Check dimensions for the interior construction
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- All dimensions are measured at the centre of Vie outer roof frame or inner screwed points. The dimensions are measured directly.
- A compass can be used for measuring for a fast body diagnosis.
- The profile comparator is to be used for symmetrical measurement for a detailed body diagnosis or when measuring body parts during repair work. (Symetro).
- - Dimension P1 is measured at the front screwed point.
- - Dimension P2 is measured at the central screwed point.
- - Dimension P3 is measured at the rear screwed point.
- - Dimension A (Diagonal dimension) is measured from the front screwed point P1 to the rear screwed point P3.
- - Dimension B is measured at the front roof frame centering hole to the rear centre panel edge.

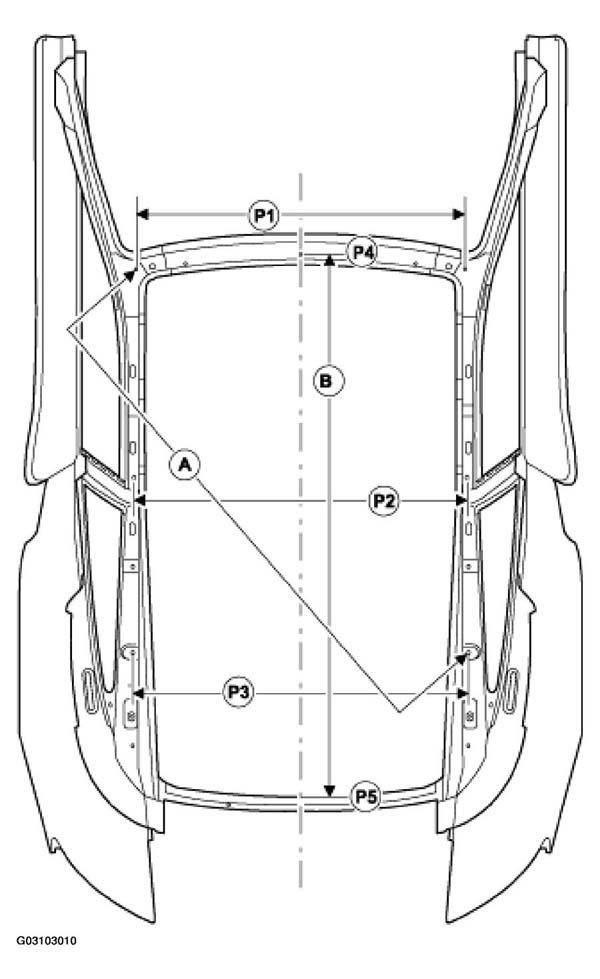

INTERIOR CONSTRUCTION DIMENSION DESCRIPTIONS - TARGA
| Dimension | Measuring points | Designation | Dimension in mm |
|---|---|---|---|
| P1 | P1-P1 | Front screwed points | 1029,2 +/-3 |
| P2 | P2-P2 | Central screwed points | 1043 +/-3 |
| P3 | P3-P3 | Rear screwed points | 1052 +/-3 |
| A | P1-P3 | Diagonal screwed points | 1059,5 +/-4 |
| B | P4 - P5 | Front roof frame centering hole to rear centre panel | 1703 +/-4 |
