Check dimensions for the exterior construction
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

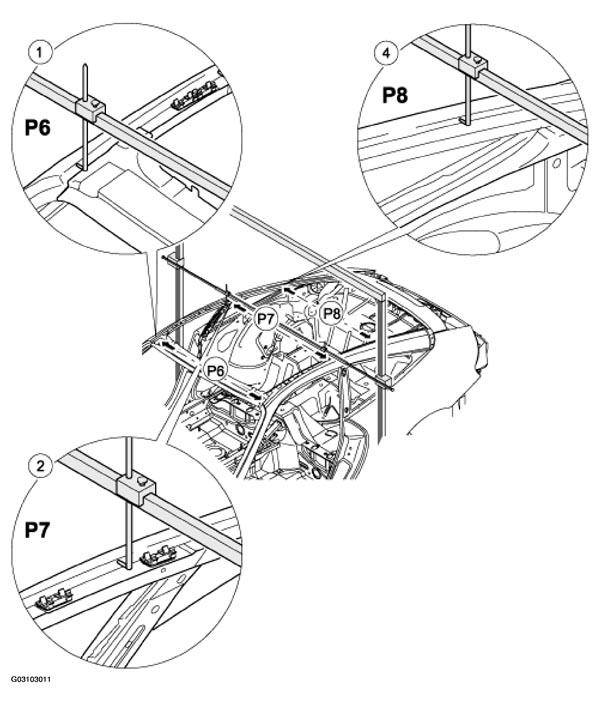

- Dimension P6 is measured at the front via the screwed point P1.
- Dimension P7 is measured at the front via the screwed point P2.
- -Dimension P8 is measured at the front via the screwed point P3.
EXTERIOR CONSTRUCTION DIMENSION DESCRIPTIONS - TARGA
| Dimension | Measuring points | Designation | Dimension in mm |
|---|---|---|---|
| P6 | P6-P6 | Front roof frame | 1006.6 +/-3 |
| P7 | P7-P7 | Centre roof frame | 1010.2 +/-3 |
| P8 | P8-P8 | Rear roof frame | 971.6 +/-3 |
