Replacing steering lock: Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

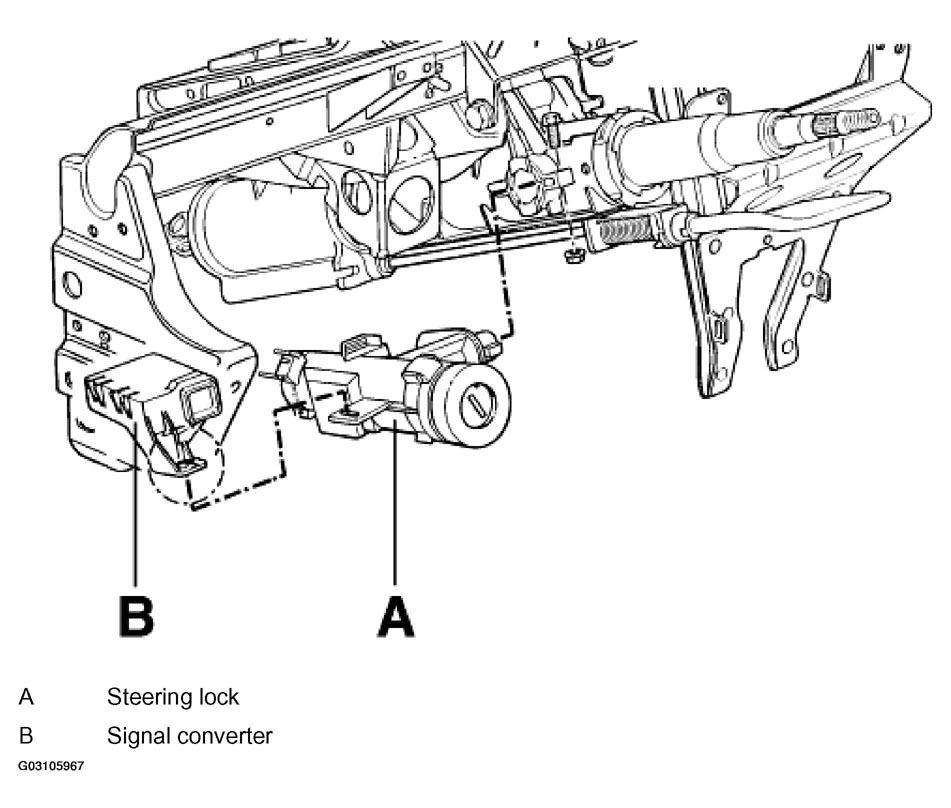

Fig 1: Identifying Steering Lock And Signal Converter

Courtesy of PORSCHE OF NORTH AMERICA, INC.

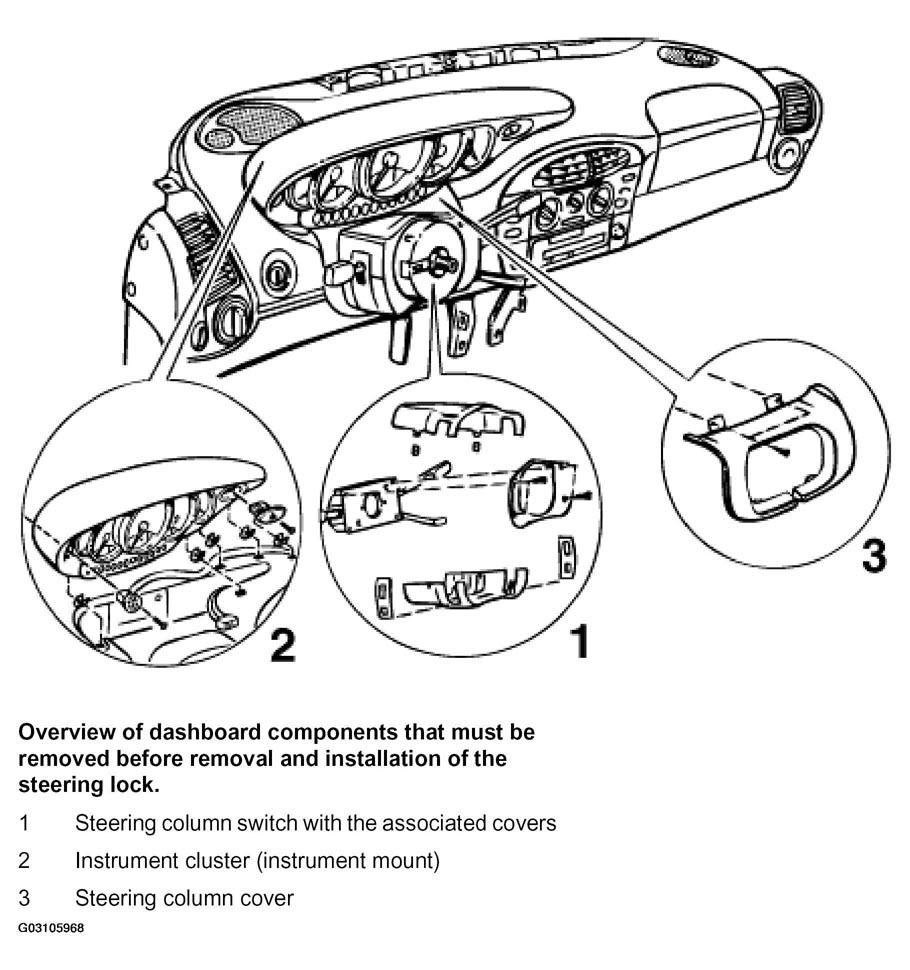

Fig 2: Identifying Steering Column Switch, Instrument Cluster And Steering Column Cover

Courtesy of PORSCHE OF NORTH AMERICA, INC.

NOTE: The steering wheel must be removed before components 1 - 3 can be removed, refer to REMOVING AND INSTALLING STEERING WHEEL (AIRBAG) .
