Removing and installing steering column: Notes
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

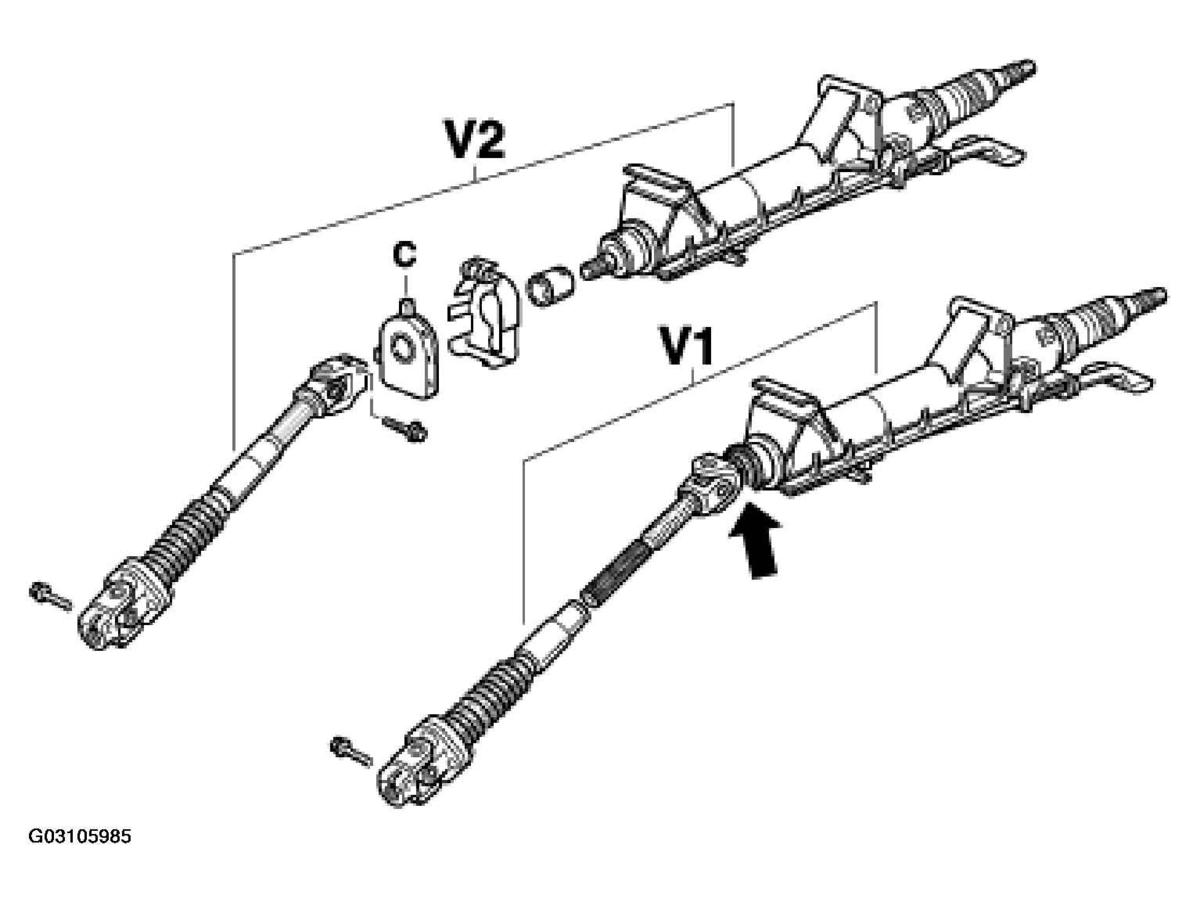

There are 2 steering column variants -V1 and V2- installed in the 911 Carrera (996). -V1- for vehicles without PSM and -V2- for vehicles with PSM.
For the -V2- variant, (vehicles with PSM), the lower steering shaft can be separated from the upper steering shaft, as there is an (exchangable) steering angle sensor -C- located there.
For the -V1- variant, (vehicles without PSM), the lower steering shaft is permanently connected to the upper steering shaft up to the 1999 model -arrow- . For the -V1- variant as of the 2000 model, the steering shafts in this area can also be separated/unscrewed (like vehicles with PSM). This version is not depicted.
NOTE:
- The -V2- variant (for vehicles with PSM) is supplied as a spare part ready for installation (complete with steering angle sensor and lower steering shaft)!
- The -V1- variant is also supplied as a spare part ready for installation (complete with lower steering shaft)!
