Removing and installing lock barrel: Removal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect battery ground cable.
  2. Pull cover (collar) off the steering lock.
  3. Insert ignition key and turn to position 1 (ignition on). Insert a steel wire (C) with a diameter of approx. 1.3 mm (max. 1.5 mm diameter) into the bore next to the ignition key (arrow) as far as it will go. Pull the lock barrel with induction coil out of the steering lock housing.
    NOTE: Inserting the steel wire (C) unlocks the lock barrel in the steering lock housing.

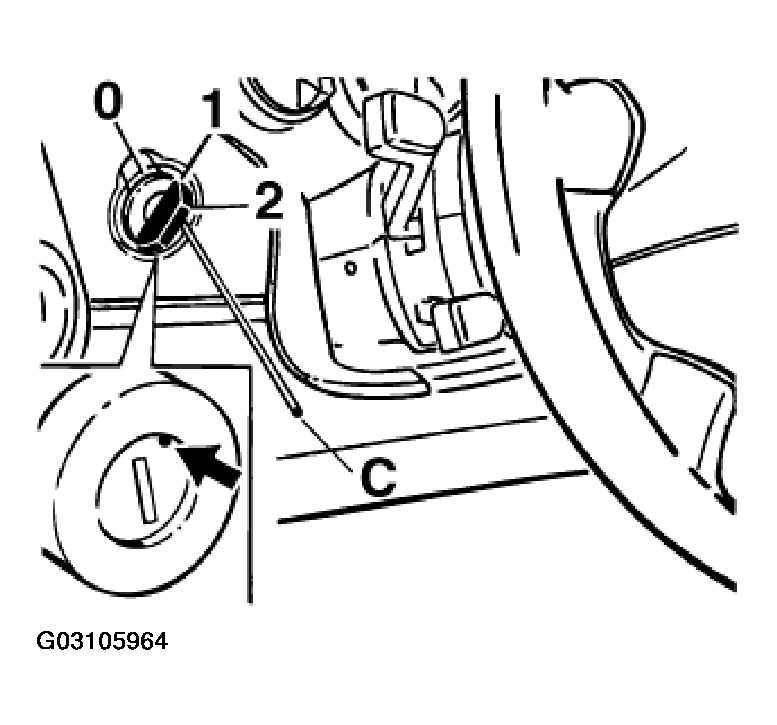

    Fig 1: Inserting Steel Wire Into Bore Next To Ignition Key
    G03105964Courtesy of PORSCHE OF NORTH AMERICA, INC.
  4. Carefully unlock and separate the plug connection on the lock barrel (at the induction coil for the immobilizer).
