Plug-in couplings for steering hydraulic system: Tools
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL DESCRIPTION
| No. | Designation | Special tool | Explanation |
|---|---|---|---|

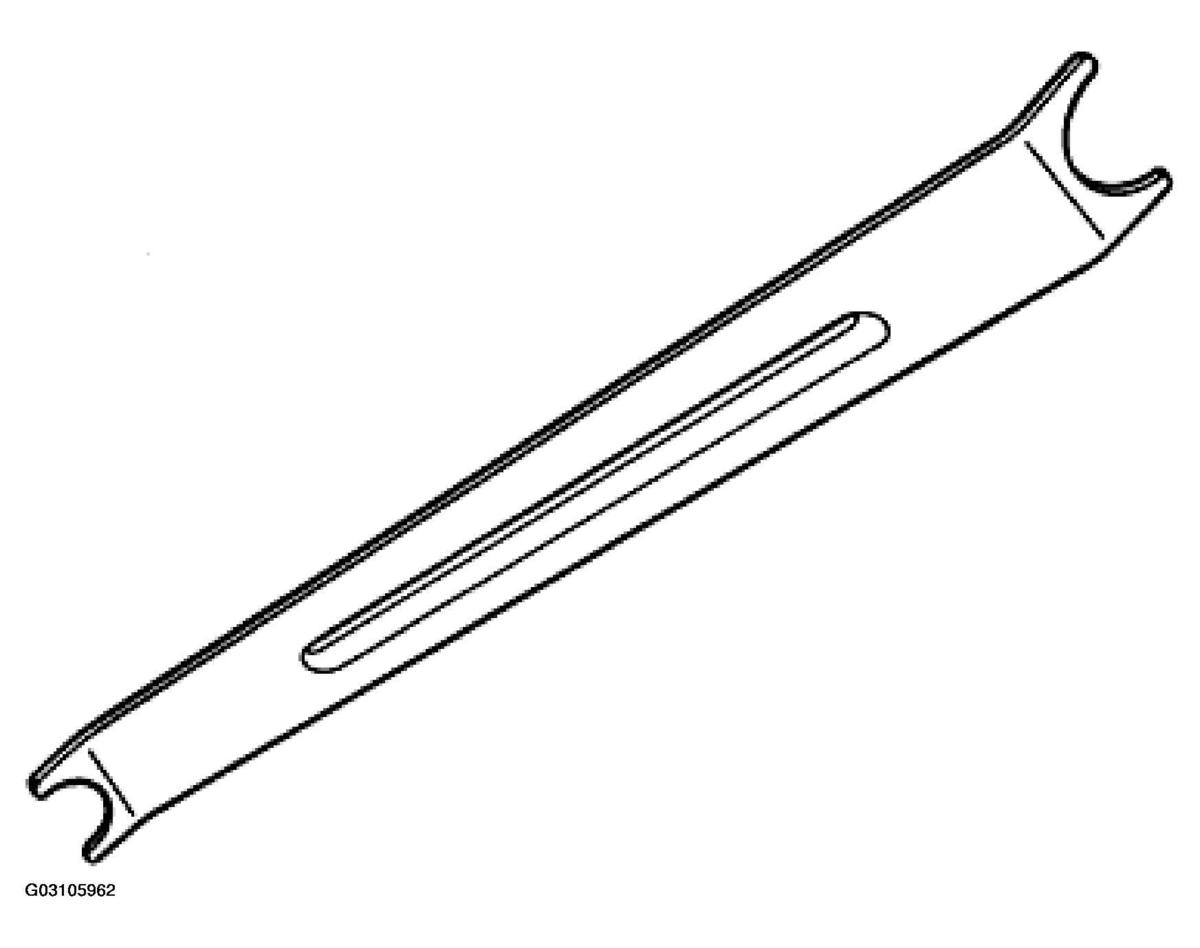

| -- | Testing tool for plug-in couplings | 9623 | Used to check whether the plug-in couplings are seated properly. Suitable for pressure and return lines (nominal diameter 6 and nominal diameter 10) |
NOTE:
Pressure and return lines have different dimensions. Pressure line = nominal diameter 6, return line = nominal diameter 10.
The plug-in coupling is opened by unscrewing. It is joined by plugging together.
Join the plug-in connection only in a straight line. Never use excess force.
After separating the plug and socket piece, carefully protect them against dirt and scratches with caps.
Correct engagement must be checked with a gentle pull. Use special tool 9623 for this purpose
PLUG-IN COUPLINGS PROCEDURE AND INSTRUCTIONS
| No. | Procedure | Instructions |
|---|---|---|
| 1 | Open plug-in coupling. | Turn at threaded part A to open the plug-in coupling. When doing so, counter at plug-in coupling B. |
| Open corresponding retainers on the body. | Carefully disengage clip and fold down. | |
| 2 | Remove holder C. | Tilt holder C on one side and simultaneously pull to disengage. |
| 3 | Pull threaded part A from the plug. | Detach threaded part A by pulling it off the plug. |
| 4 | Screw together plug-in coupling. | Close holder C (arrow / dovetail system). Screw threaded part A with fitted holder C into plug-in coupling B and tighten. Counter when tightening. Replace holder C and threaded part A if necessary in order to ensure that the plug-in connection functions properly (holding function and tightness). |
| No. | Procedure | Instructions |
| 5 | Join plug-in coupling. | Insert the plug (line with plug) into the plug-in coupling in a straight line. The plug must audibly engage in the holder. |
| 6 | Use special tool 9263 to check whether the plug-in coupling was engaged properly. | Insert special tool 9263 into the groove (arrow) and apply slight pressure on the special tool to check whether the connection is securely locked (holder is seated properly). The plug must not slide out. If the special tool cannot be inserted in the groove of the plug, shift the plug in the plug-in coupling (pull on plug without using excess force). |
NOTE:
The plug-in connection is designed so that the plug can be shifted in the plug-in coupling by approx. 1 mm in axial direction by slightly pulling or pressing.
Close corresponding retainers on the body.
Carefully fold the clip up and engage.
