Sealing ring for differential - Removing and installing halfshaft flange: Removal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

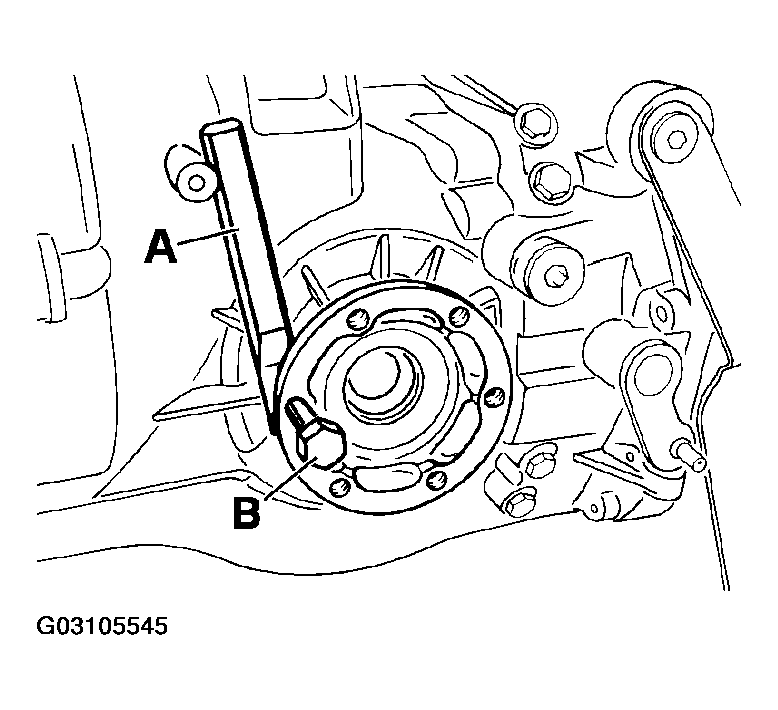

Remove right halfshaft flange. To do this, place a chisel or spacer "A" under the halfshaft flange and pull out the halfshaft flange by turning the screw "B".

Fig 1: Placing Spacer Under Right Halfshaft Flange
Courtesy of PORSCHE OF NORTH AMERICA, INC.

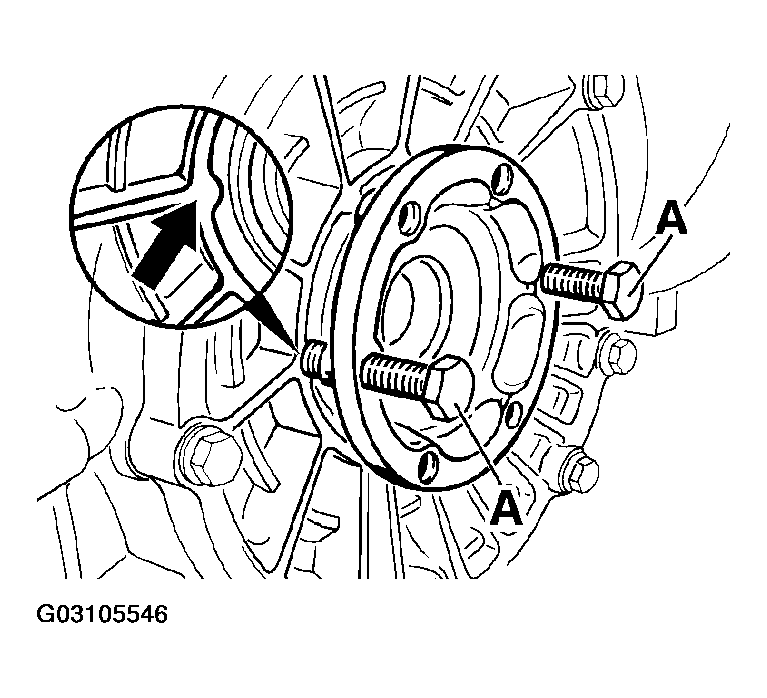

NOTE: Pull out left halfshaft flange by screwing in the hexagon-head bolts "A" on alternate sides. The bolts must be supported on the rib reinforcements of the cover (see Fig 2 ).

Fig 2: Pulling Out Left Halfshaft Flange By Screwing In Hexagon-Head Bolts
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Lever out sealing ring using a suitable tool.
