Sealing ring for differential - Removing and installing halfshaft flange: Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

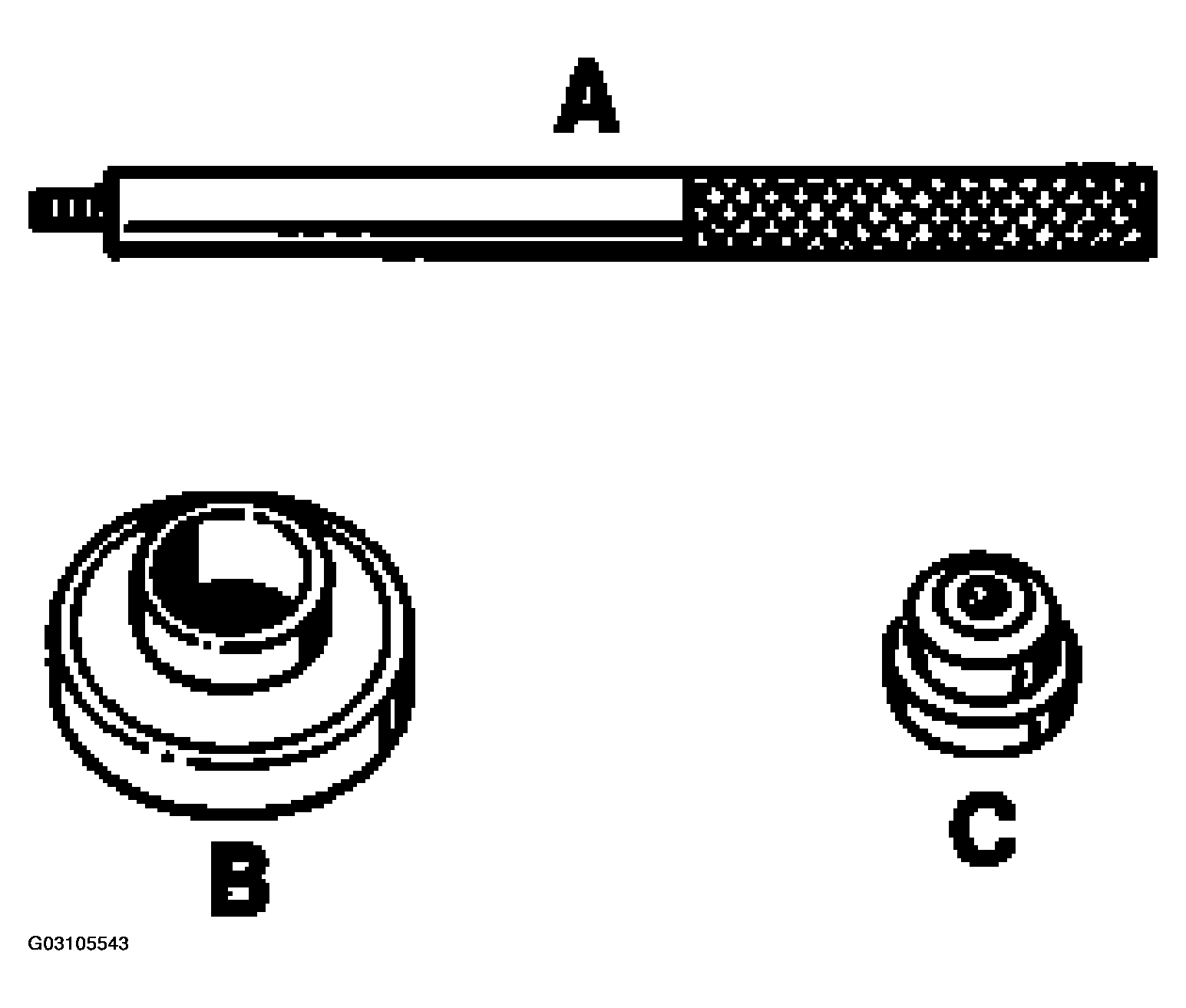

Fig 1: Identifying Sealing Ring For Differential Special Tools

Courtesy of PORSCHE OF NORTH AMERICA, INC.

SEALING RING FOR DIFFERENTIAL SPECIAL TOOLS

Item	Designation	Special tool
A	Pull-in tool and extractor	P 254
B	Pressure piece	9252
C	Pressure piece	9247/1

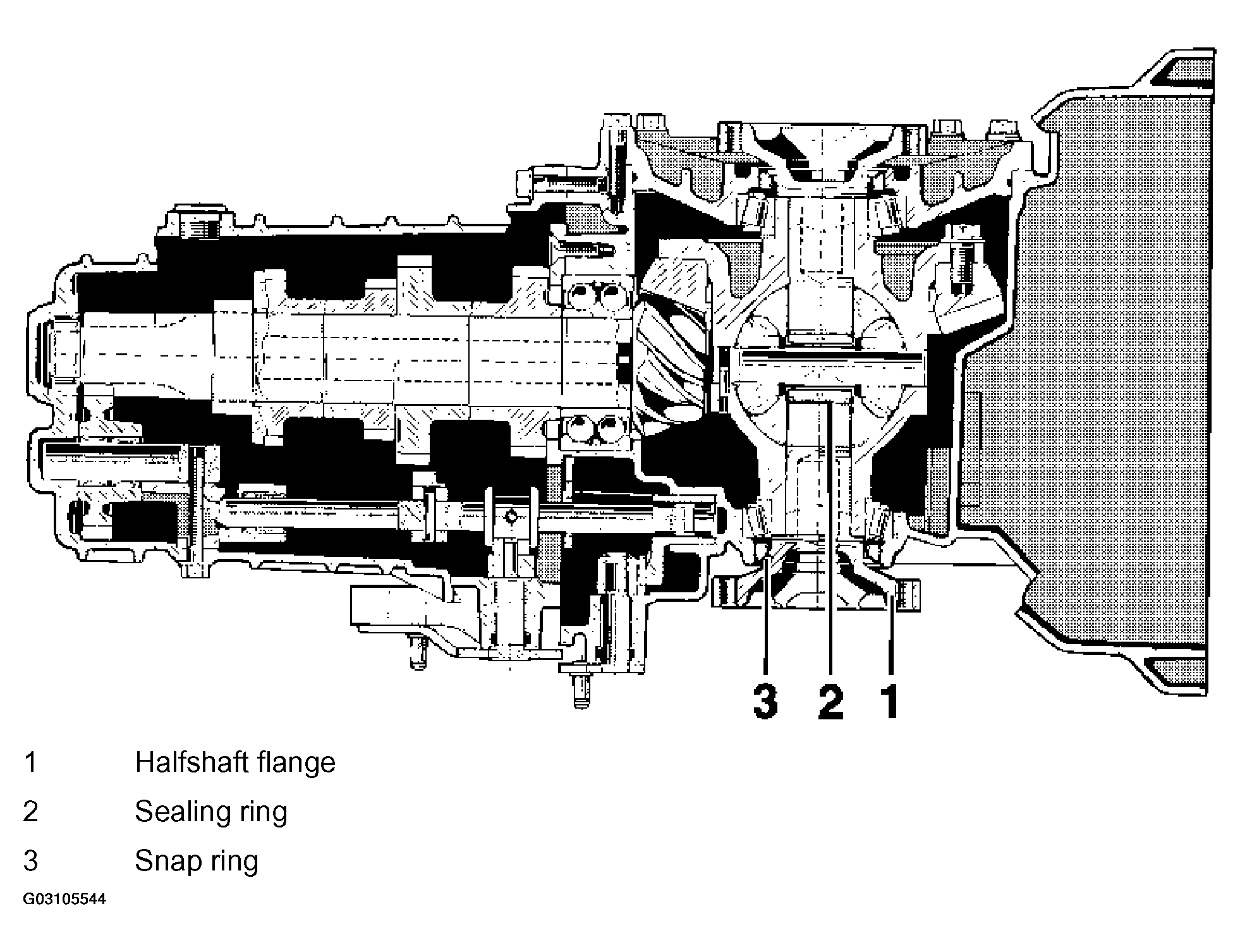

Fig 2: Identifying Halfshaft Flange Components

Courtesy of PORSCHE OF NORTH AMERICA, INC.

NOTE: The sealing rings can also be replaced with the transmission installed.
