Sealing ring for differential - Removing and installing halfshaft flange: Installation

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Fill the space between the dust and sealing lips with grease (e.g. Liqui - Moly) and drive in the sealing ring up to the mounting face using special tool 9252.

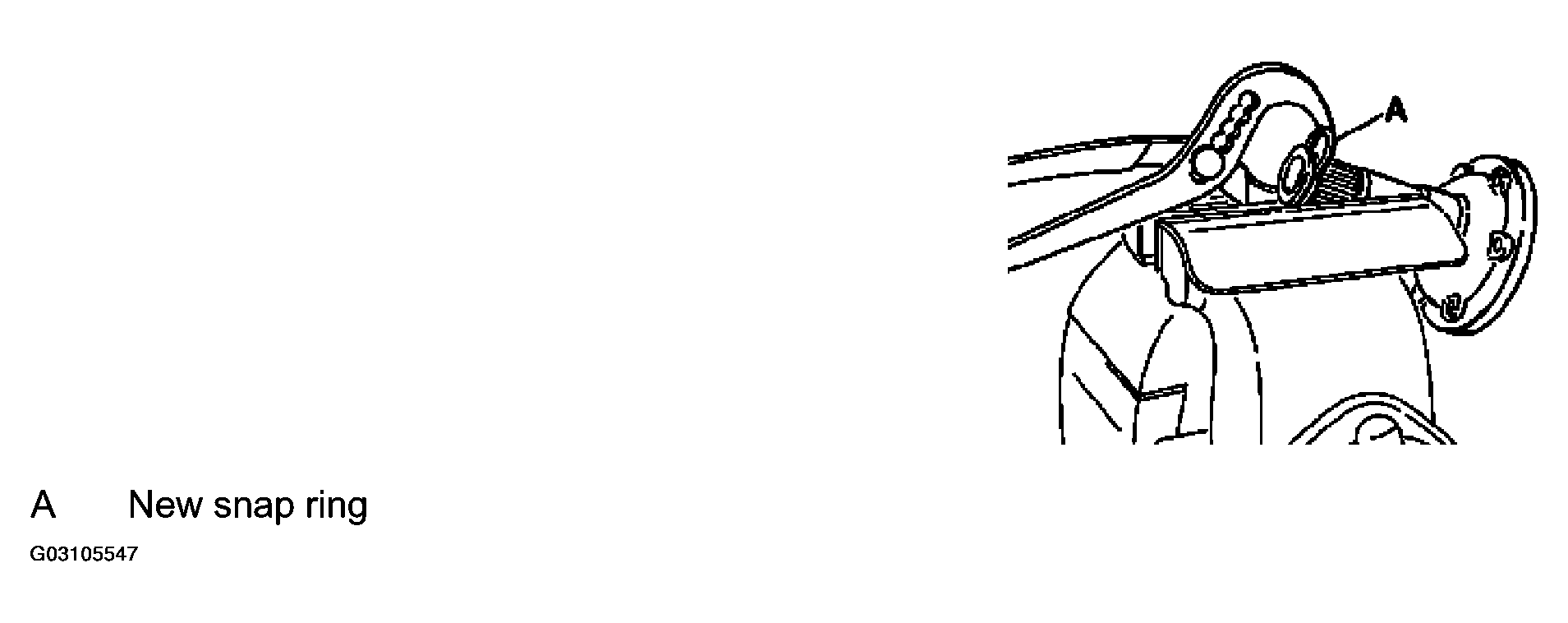

Always replace the snap ring for the halfshaft flange. To do this, clamp the flange in the vice with protective jaws and press out the snap ring with the new snap ring "A".

Fig 1: Installing Snap Ring On Halfshaft Flange
Courtesy of PORSCHE OF NORTH AMERICA, INC.

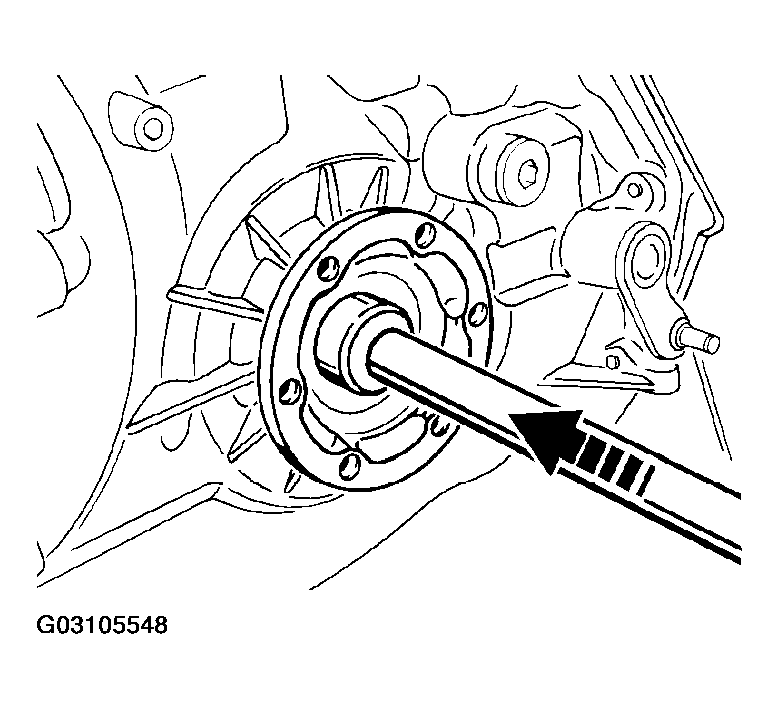

Grease the snap ring well and drive in the halfshaft flange using the special tools P254 and 9247/1.

Fig 2: Installing Halfshaft Flange
Courtesy of PORSCHE OF NORTH AMERICA, INC.
