Removing and installing the viscous clutch: Removal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove cardan shaft (refer to Removing and installing cardan shaft  ).
  2. Remove final drive at the front (refer to Removing and installing front final drive  ).
  3. Clamp final drive into the vice with special tool VW 457, drain oil and remove the long-neck pipe.

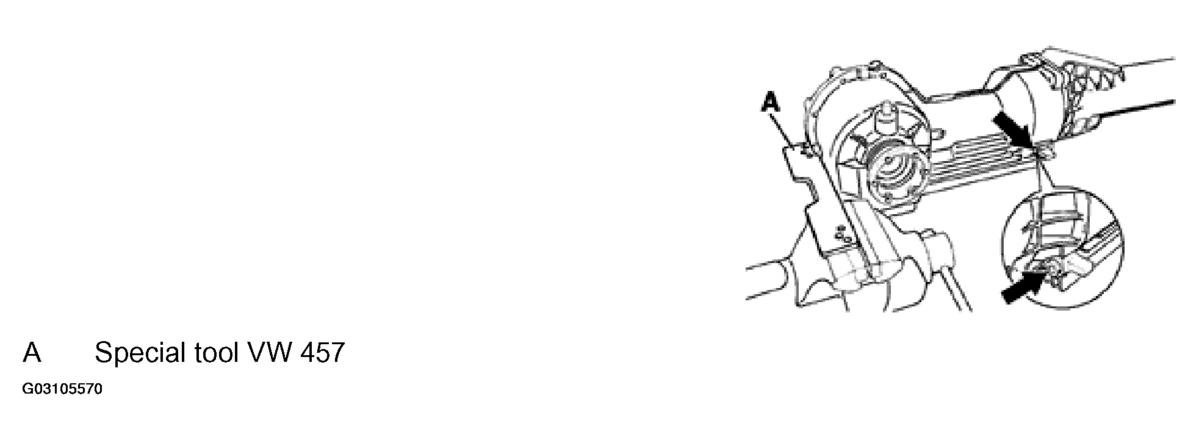

    Fig 1: Clamping Final Drive Into Vice With Special Tool
    G03105570Courtesy of PORSCHE OF NORTH AMERICA, INC.
  4. Remove snap ring and take out viscous clutch with supporting ring.
