Removing and installing support for final drive: Installation

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Fit support in the correct position (angled side facing upwards).

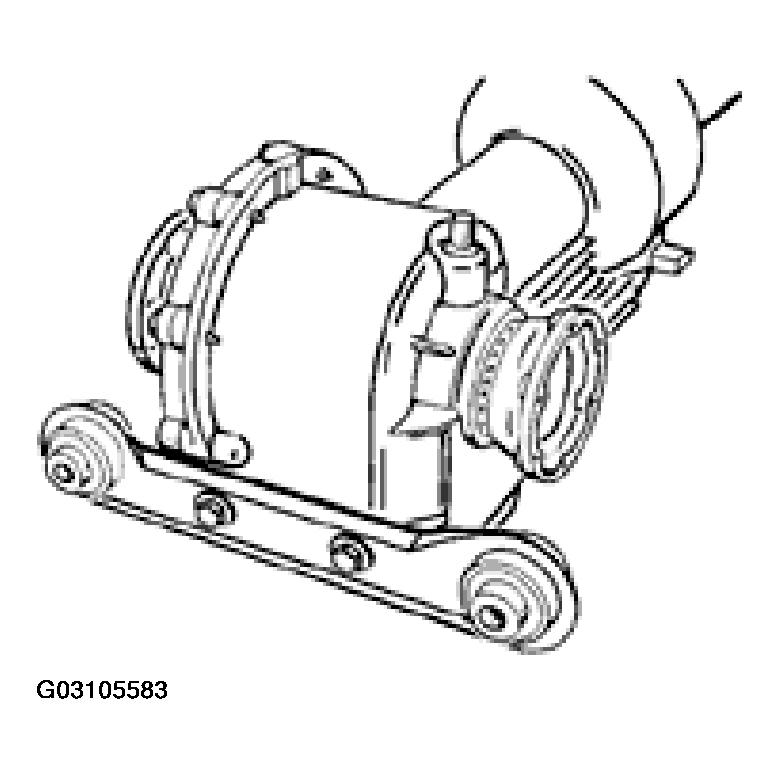

Fig 1: Fitting Support In Correct Position
Courtesy of PORSCHE OF NORTH AMERICA, INC.

NOTE: At the beginning of the series, supports with tabs were installed. These supports must be fitted with the tabs facing downwards.

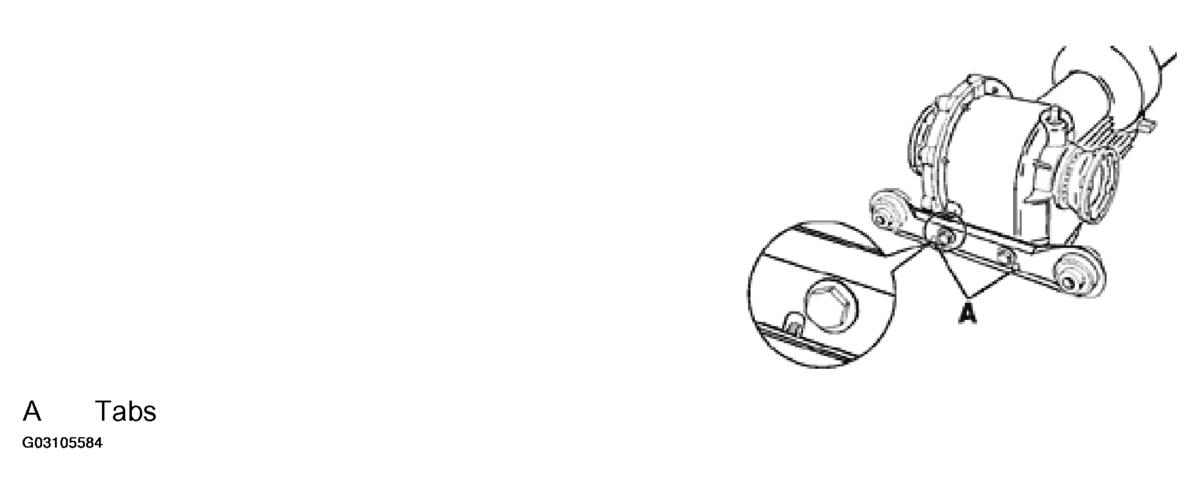

Fig 2: Identifying Tabs On Supports
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Tighten fastening screws in two stages.
1st stage:

Screw both screws to 5 Nm (3.7 ftlb.).

2nd stage:

Tighten both screws to 65 Nm (48 ftlb.).
Install final drive.
