Removing and installing sealing ring for short flanged shaft: Removal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove left rear wheel.
  2. Uncouple left drive shaft on the transmission side.
  3. Place oil collection pan under the transmission.
  4. Unscrew fastening screw for flanged shaft.

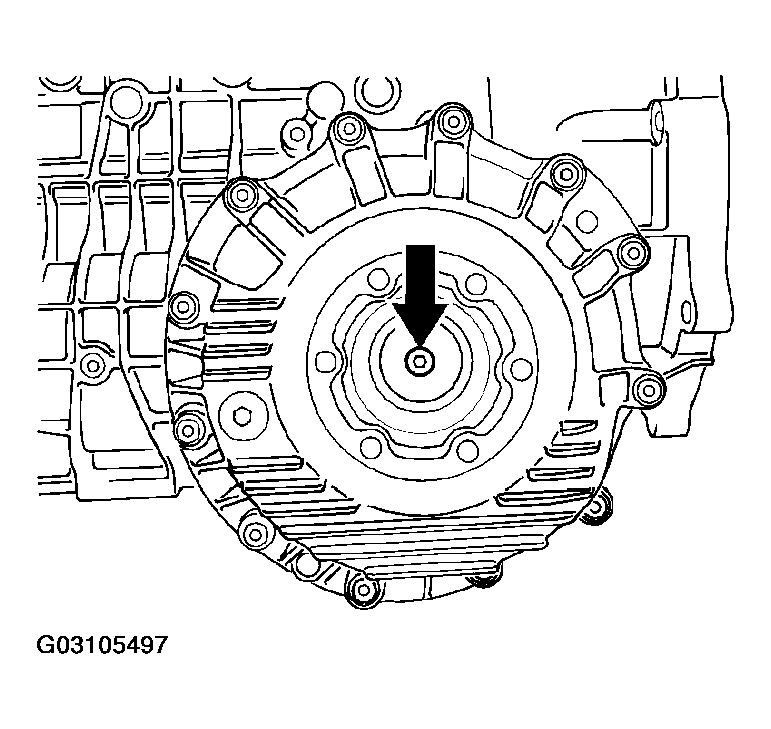

    Fig 1: Unscrewing Fastening Screw For Flanged Shaft
    G03105497Courtesy of PORSCHE OF NORTH AMERICA, INC.
  5. Pull out flanged shaft.
  6. Remove sealing ring with special tool VW 681.

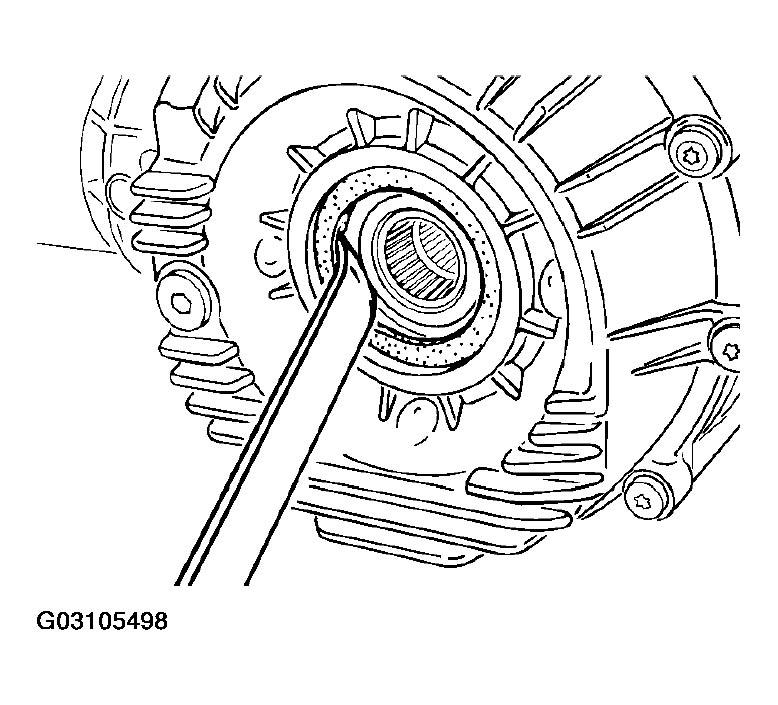

    Fig 2: Removing Sealing Ring For Short Flanged Shaft With Special Tool
    G03105498Courtesy of PORSCHE OF NORTH AMERICA, INC.
