Removing sealing ring for short flanged shaft

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The short flanged shaft can be removed only by partially undoing the wheel suspension.

Remove right rear wheel.
Uncouple drive shaft on the transmission side.
CAUTION: Protect drive shaft and shaft flange from damage.
Remove spacer ring

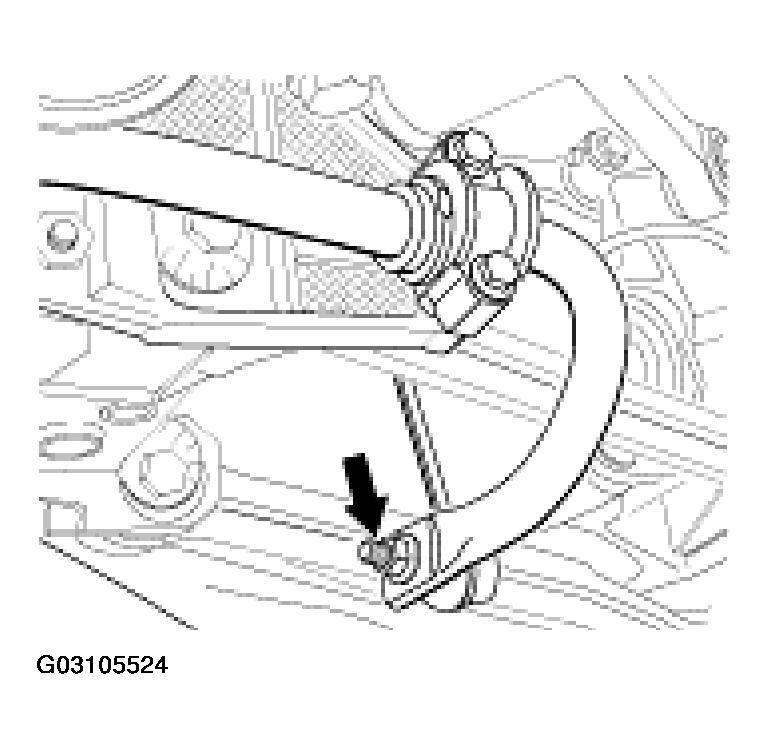

Undo right stabilizer mount.

Fig 1: Removing Right Stabilizer Mount (As Of MY 2002)
Courtesy of PORSCHE OF NORTH AMERICA, INC.

NOTE: Counter with an open-ended wrench when removing from the stabilizer fastening.

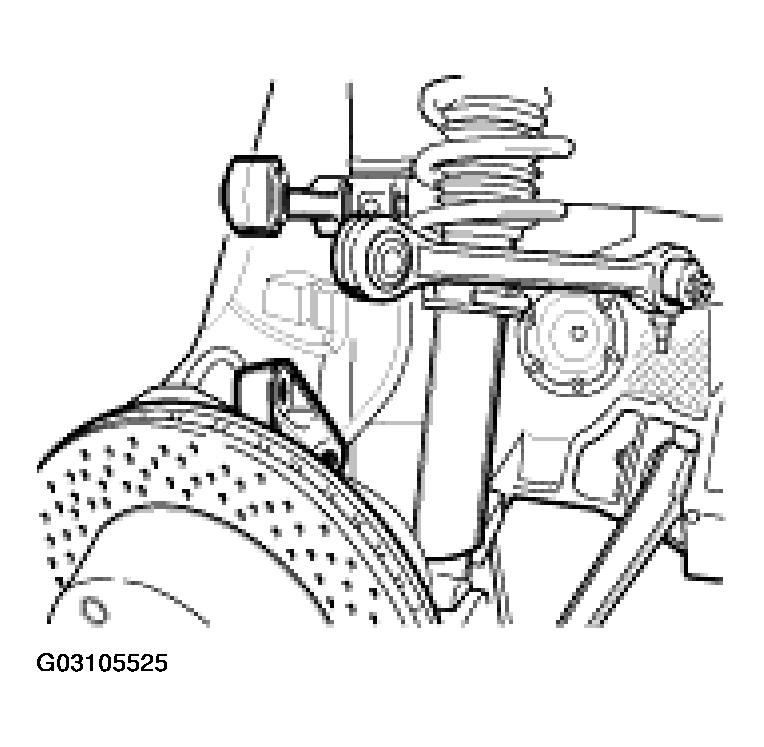

Undo the outer ends of both upper arms and remove the screws.

Fig 2: Undoing Outer Ends Of Upper Arms (As Of MY 2002)
Courtesy of PORSCHE OF NORTH AMERICA, INC.

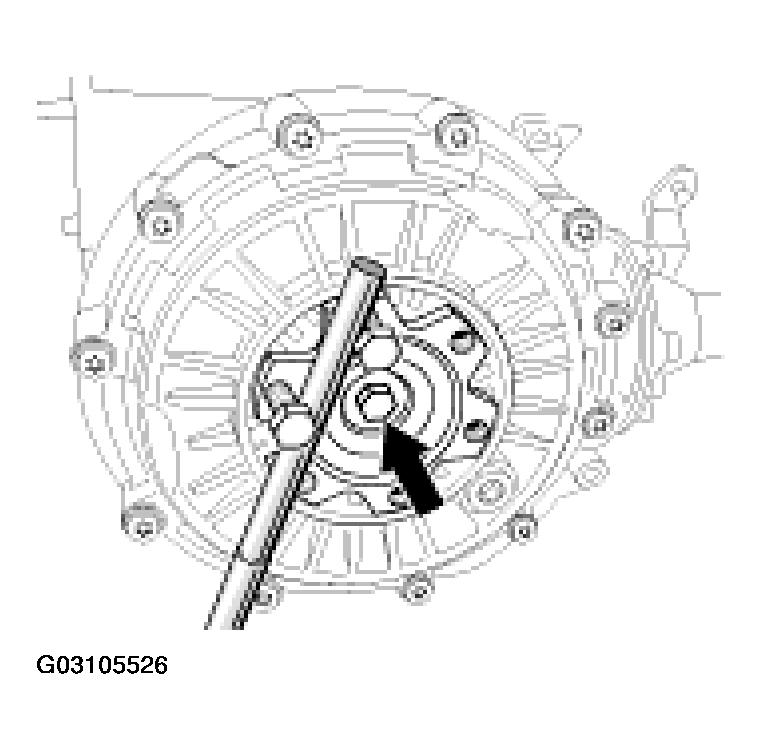

Unscrew fastening screw for flanged shaft (Fig 3 shows removed transmission).

Fig 3: Unscrewing Fastening Screw For Flanged Shaft (As Of MY 2002)
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Press wheel carrier downwards and pull out flanged shaft.

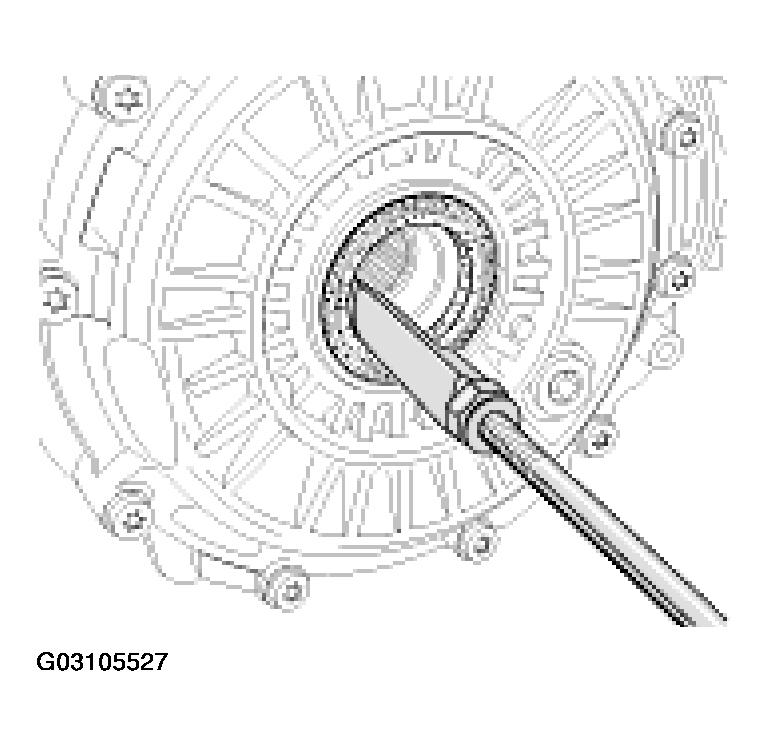

Remove sealing ring with special tools VW 771/1 and VW 771/37 (Fig 4 shows removed transmission).

Fig 4: Removing Sealing Ring (As Of MY 2002)
Courtesy of PORSCHE OF NORTH AMERICA, INC.
