Installing sealing ring for short flanged shaft

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Install in reverse order, observing the following points:

NOTE: The sealing ring must fit in the housing at the same depth all round.

Thinly coat sealing lip and outer circumference of sealing ring with Vaseline and insert sealing ring with special tool 9252 up to the stop (Fig 1 shows removed transmission).

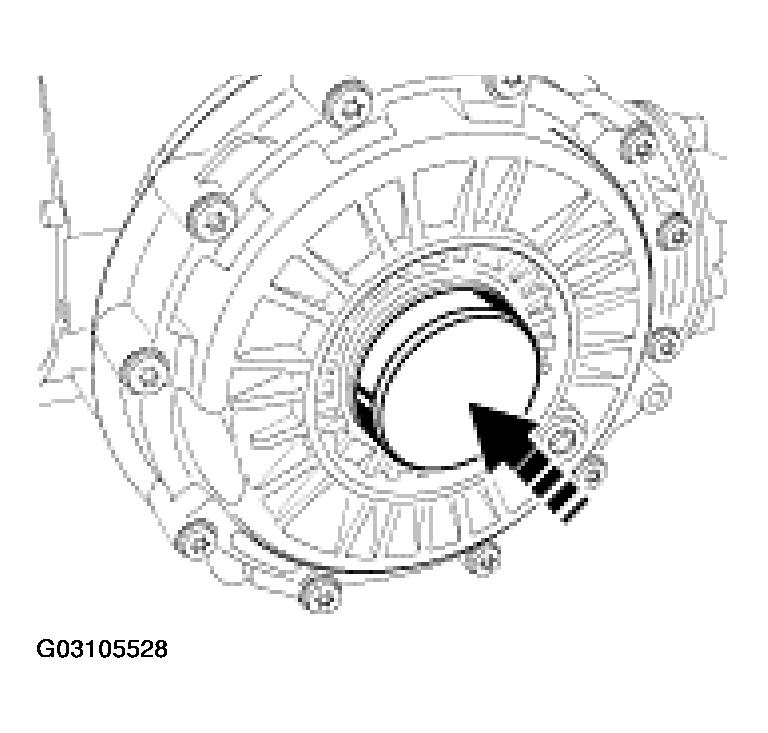

Fig 1: Inserting Sealing Ring (As Of MY 2002)
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Check transmission oil in the final drive and top up if necessary. See Changing transmission oil in final drive (as of MY 2002) .
