Removing and installing sealing ring for long flanged shaft: Tool

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

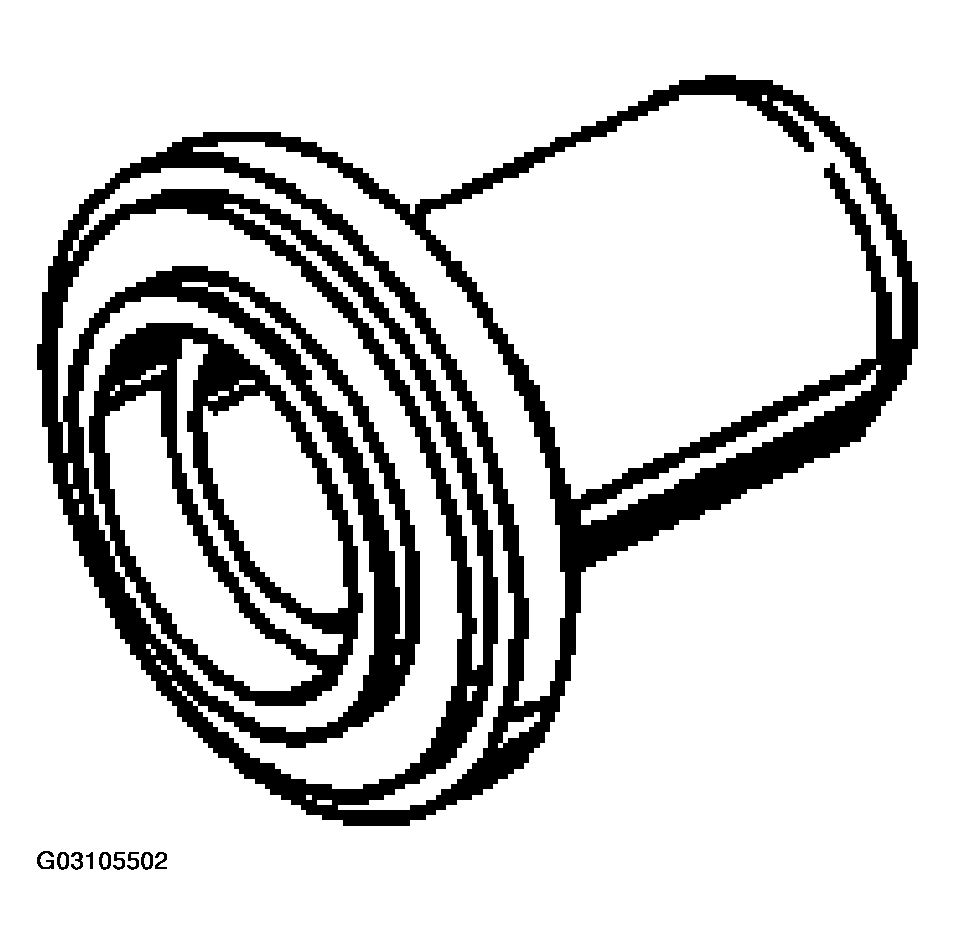

Fig 1: Identifying Sealing Ring For Long Flanged Shaft Special Tool
G03105502Courtesy of PORSCHE OF NORTH AMERICA, INC.
SEALING RING FOR LONG FLANGED SHAFT SPECIAL TOOL DESCRIPTION

Item Designation Special tool Explanation
A Pressure piece 9615
B Pull-in tool and extractor P254
