Removing and installing sealing ring for long flanged shaft: Removal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Remove long flanged shaft (see Removing and installing long flanged shaft ).
Remove snap ring for ball bearing.

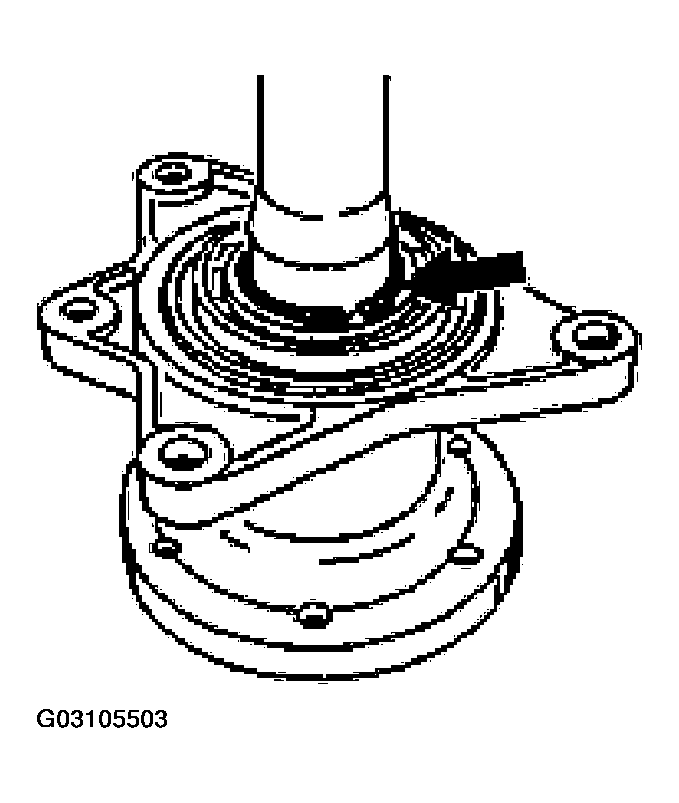

Fig 1: Removing Snap Ring For Ball Bearing
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Press flanged shaft out of mounting saddle.

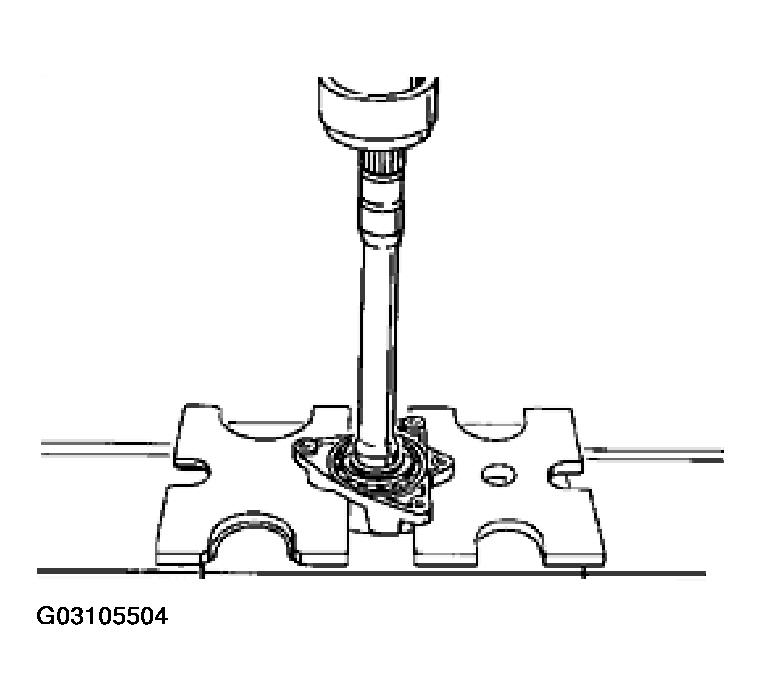

Fig 2: Pressing Long Flanged Shaft Out Of Mounting Saddle
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Lever sealing ring out of mounting saddle with large screwdriver.
