Removing sealing ring

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove cardan shaft. Refer to Removing and installing cardan shaft  .
  2. Engage parking lock and set the hand brake firmly.
  3. Remove collar nut with special tool socket wrench 9643.

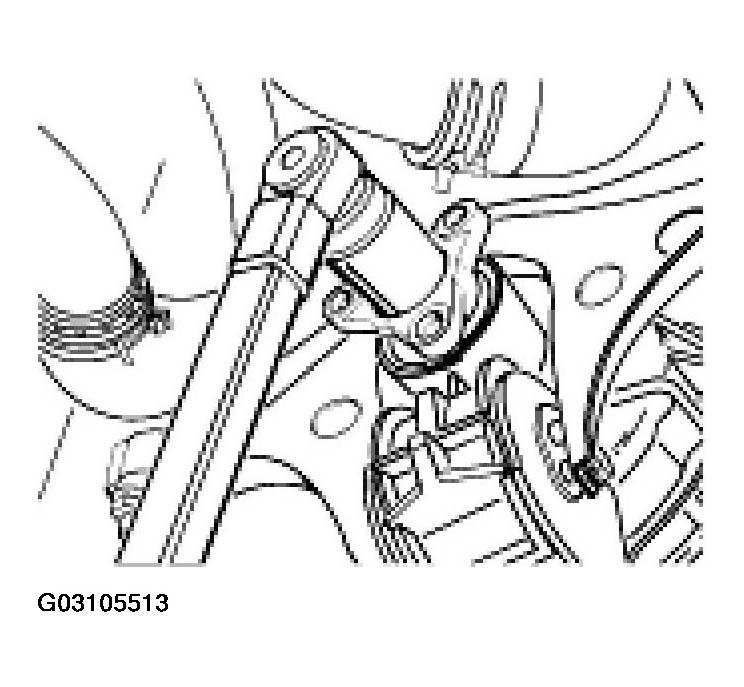

    Fig 1: Removing Collar Nut With Special Tool Socket Wrench 9643
    G03105513Courtesy of PORSCHE OF NORTH AMERICA, INC.
  4. Pull off cardan flange with three-arm puller 9643.

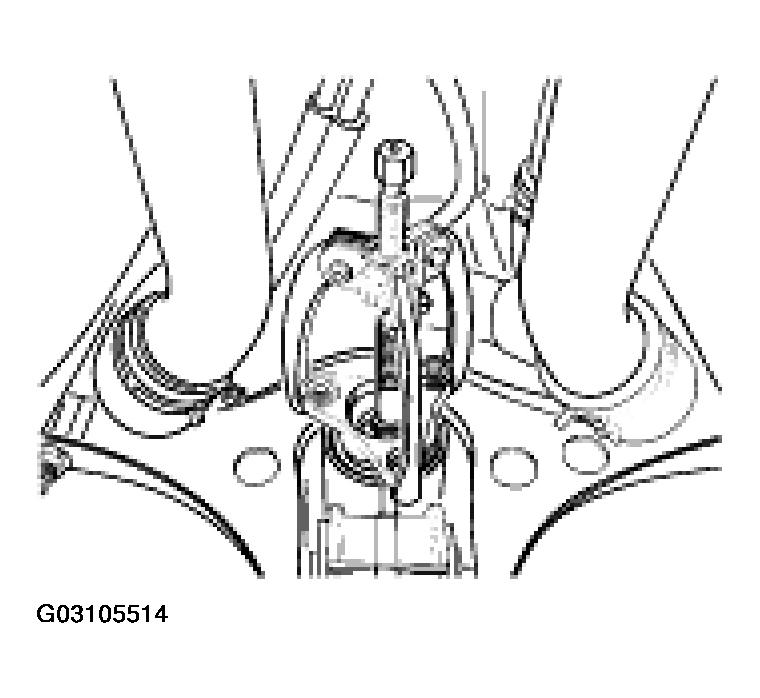

    Fig 2: Pulling Off Cardan Flange With Three-Arm Puller
    G03105514Courtesy of PORSCHE OF NORTH AMERICA, INC.
  5. Lever out sealing ring using a suitable screwdriver.
