Installing sealing ring

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Drive in sealing ring as far as the mounting face with special tool pressure piece 9641.

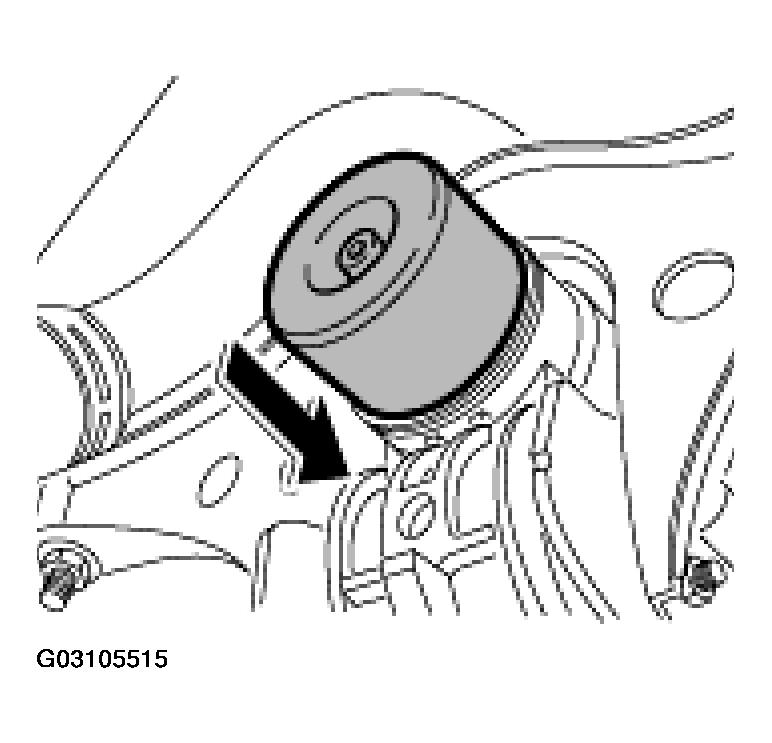

Fig 1: Installing Sealing Ring With Pressure Piece
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Push cardan flange onto the splines of the transmission shaft and tighten the collar nut.
Tightening torque: 100 Nm (74 ftlb.)
Push the tab washer over the hexagon collar nut and caulk in the correct position with the special caulking tool 9640.

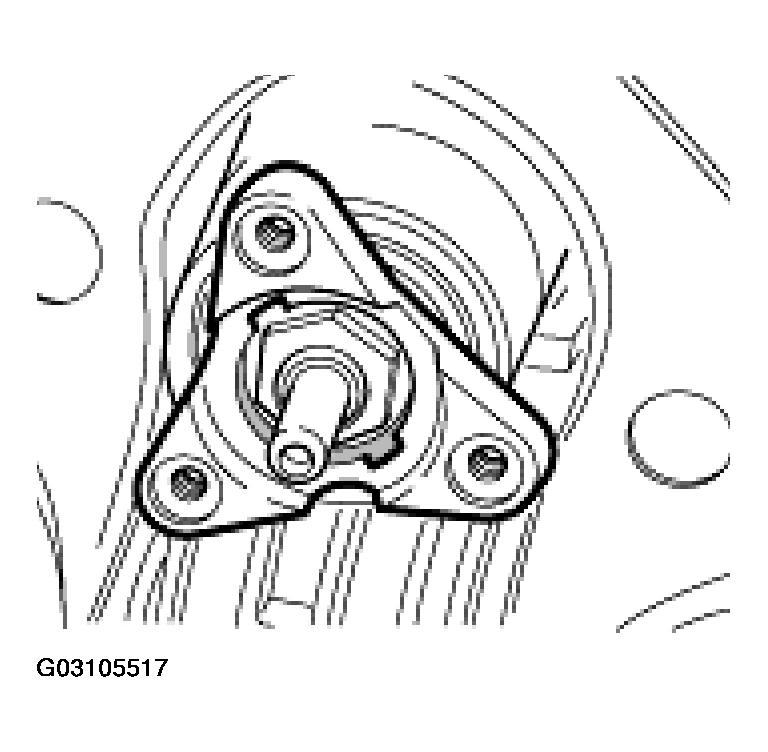

Fig 2: Pushing Tab Washer Over Hexagon Collar Nut
Courtesy of PORSCHE OF NORTH AMERICA, INC.

NOTE: Cardan flanges were also installed without a tab washer. In this case, the collar nuts were twist-locked with fluid screw locking lacquer. If repairs are needed, decrease the thread and secure with Loctite 243.
Make sure that the tab washer is seated perfectly.

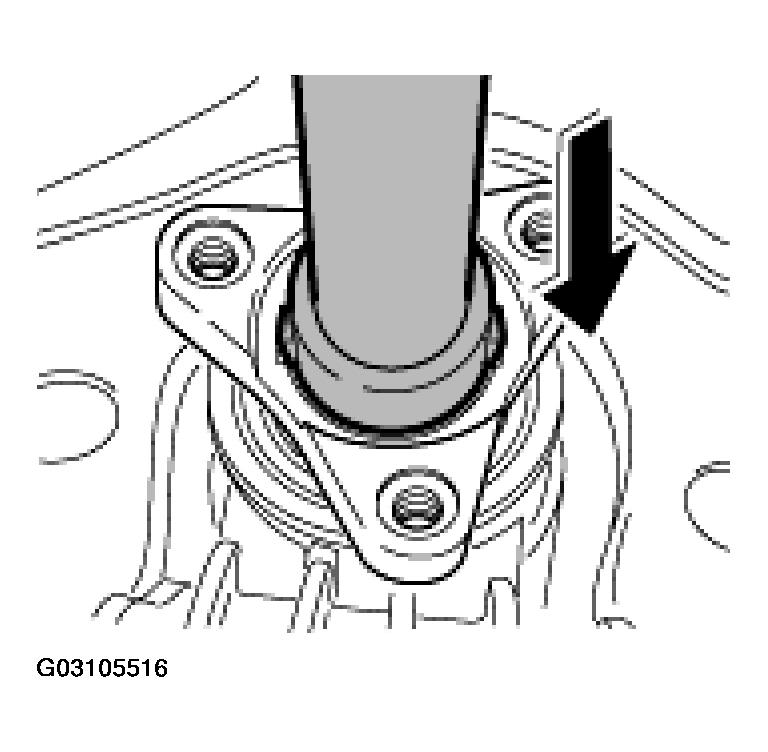

Fig 3: Checking Tab Washer Is Seated Perfectly
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Install cardan shaft. Refer to Removing and installing cardan shaft .
