Removing sealing ring for cardan flange

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove cardan shaft. Refer to Removing and installing cardan shaft  .
  2. Engage parking lock and firmly set the parking brake.
  3. Remove collar nut with special tool socket wrench 9669.

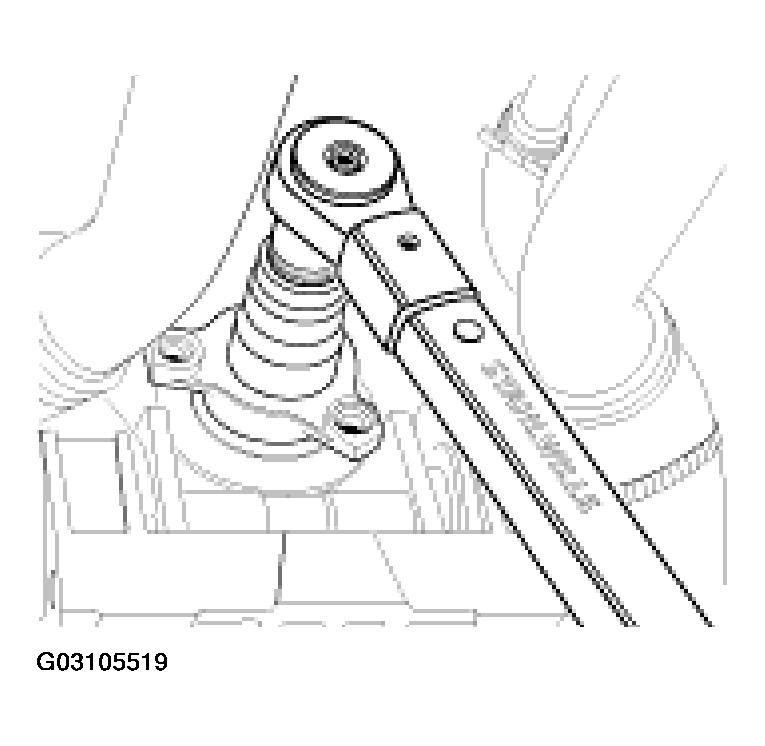

    Fig 1: Removing Collar Nut With Special Tool Socket Wrench (As Of MY 2002)
    G03105519Courtesy of PORSCHE OF NORTH AMERICA, INC.
  4. Pull off cardan flange with three-arm puller 112-1.
  5. Lever out the sealing ring with special tool hook VW 681.

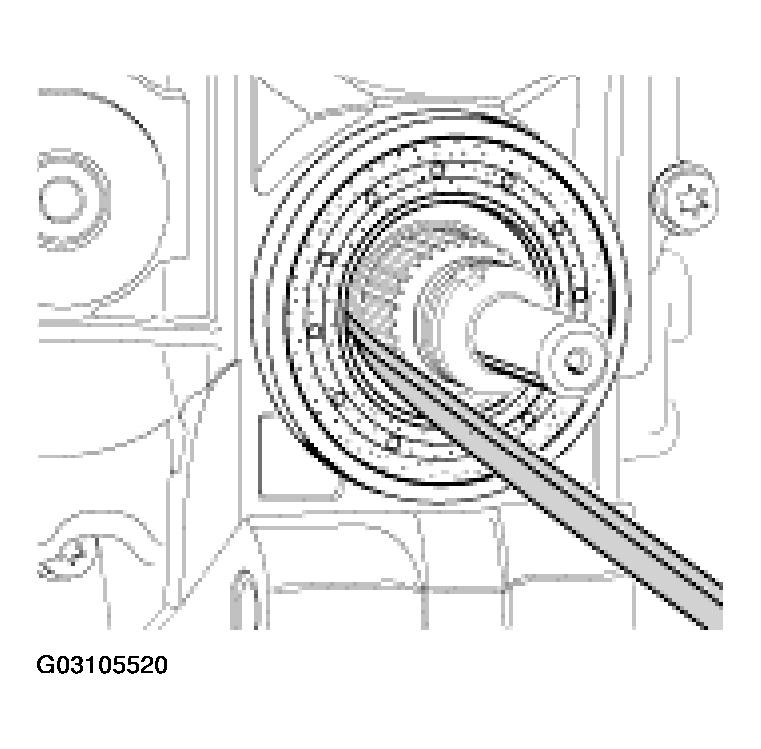

    Fig 2: Removing Sealing Ring (As Of MY 2002)
    G03105520Courtesy of PORSCHE OF NORTH AMERICA, INC.
