Installing sealing ring for cardan flange

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Replace O-ring for cardan flange.
  2. Fill the space between the dust and sealing lips on the sealing ring with grease (e.g. Liqui-Moly) and drive in the sealing ring up to the mounting face using special tool pressure piece 9668.

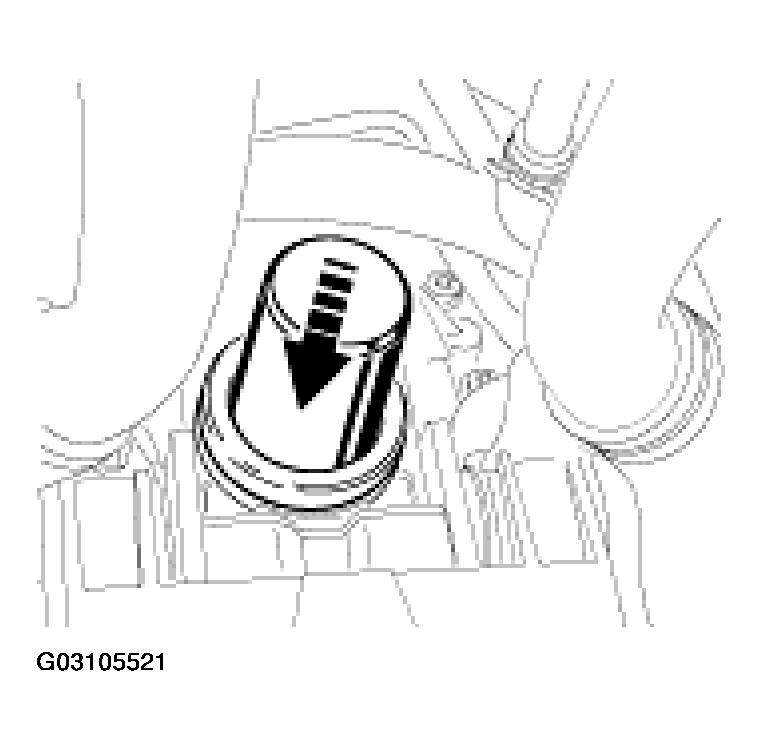

    Fig 1: Installing Sealing Ring (As Of MY 2002)
    G03105521Courtesy of PORSCHE OF NORTH AMERICA, INC.
  3. Tighten collar nut and secure by pressing in the collar.

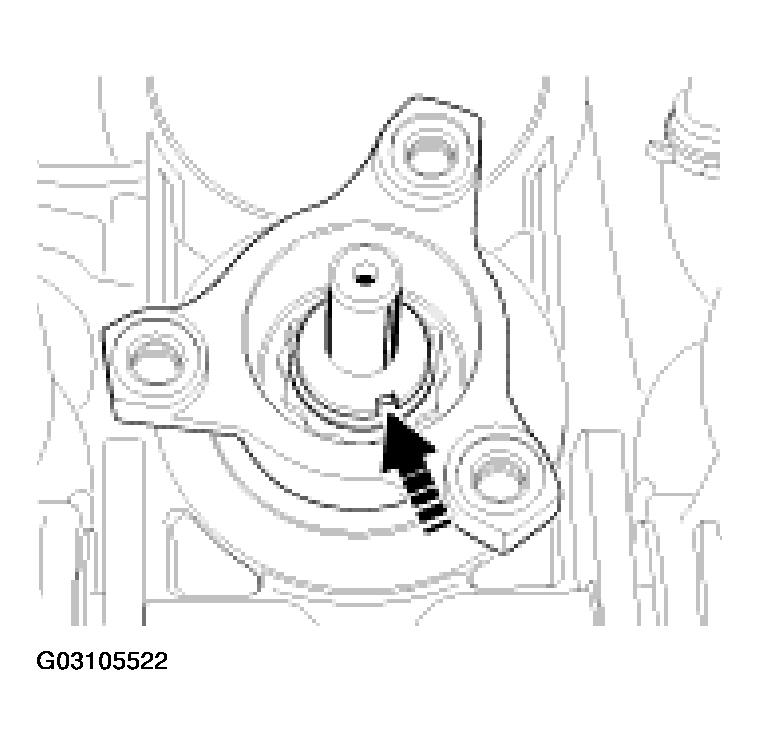

    Fig 2: Tightening Collar Nut (As Of MY 2002)
    G03105522Courtesy of PORSCHE OF NORTH AMERICA, INC.

    Tightening torque: 160 Nm (118 ftlb.)

  4. Installing cardan shaft. Refer to Removing and installing cardan shaft  .
