Removing and installing long flanged shaft: Installation

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Replace square sealing ring in mounting saddle.

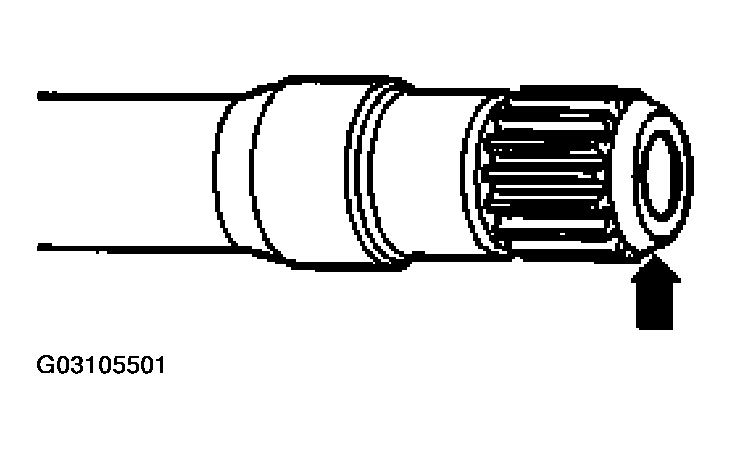

  2. Check flanged shaft for burrs and sharp edges on the transmission end of the shaft (arrow) and deburr if necessary.
    Fig 1: Checking Long Flanged Shaft
    G03105501Courtesy of PORSCHE OF NORTH AMERICA, INC.
  3. Carefully insert flanged shaft into the transmission.
    NOTE: While being inserted, the flanged shaft must be carefully guided with the hand in order to prevent damage to the double sealing ring in the transmission.
  4. Refill rear-axle oil.
