Removing long flanged shaft

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove left rear wheel.
  2. Remove left drive shaft. Refer to REMOVING AND INSTALLING DRIVE SHAFT (TIPTRONIC TRANSMISSION) .
  3. Unscrew fastening screw for the water hose holder on the mounting saddle.
  4. Unscrew fastening screws for the mounting saddle with a Torx socket wrench 9330.

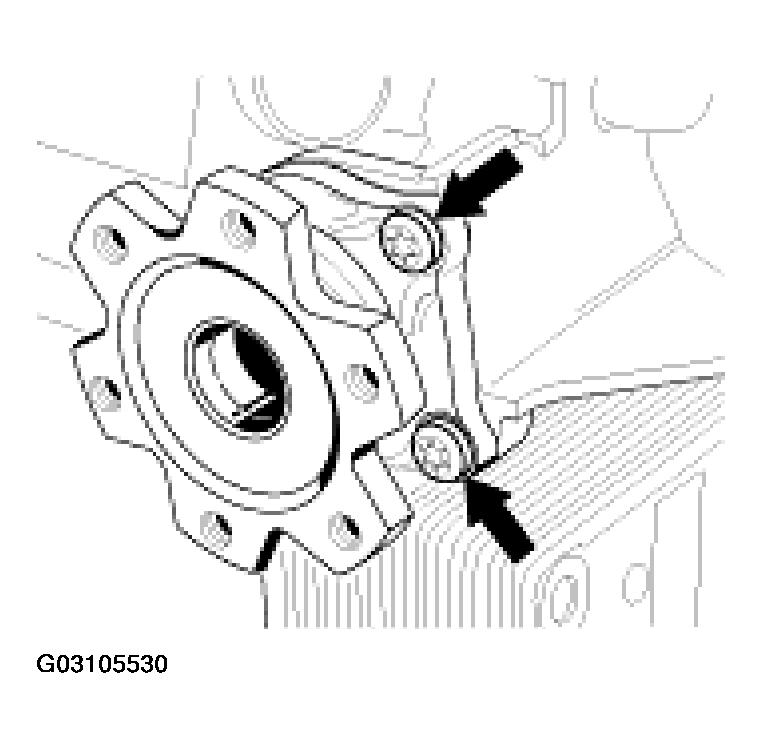

    Fig 1: Unscrewing Fastening Screws For Mounting Saddle (As Of MY 2002)
    G03105530Courtesy of PORSCHE OF NORTH AMERICA, INC.
  5. Carefully pull out flanged shaft.
