Installing long flanged shaft

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Install in reverse order, observing the following points:

Check flanged shaft for burrs and sharp edges on the transmission end of the shaft -arrow- and deburr if necessary.

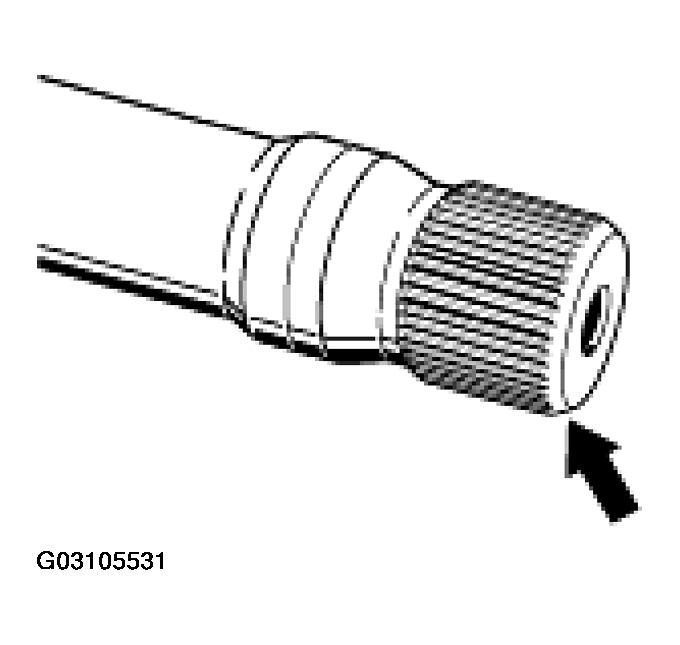

Fig 1: Checking Long Flanged Shaft For Burrs & Sharp Edges (As Of MY 2002)
Courtesy of PORSCHE OF NORTH AMERICA, INC.

NOTE: While being inserted, the flanged shaft must be carefully guided with the hand in order to prevent damage to the sealing ring in the transmission.

NOTE: Ensure that the water hoses and the holder are seated correctly.
