Removing and installing front final drive: Installation

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Install in reverse order, observing the following points:

  1. Carefully lift in the front final drive with a universal transmission jack. When doing so, do not damage the coolant pipes.

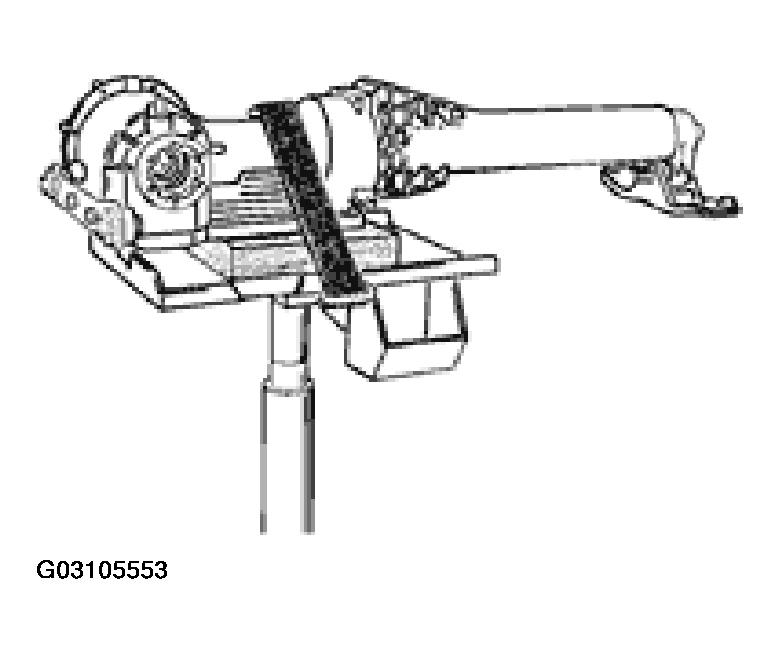

    Fig 1: Lifting In Front Final Drive With Universal Transmission Jack
    G03105553Courtesy of PORSCHE OF NORTH AMERICA, INC.
  2. Push studs through the front transmission mounts and screw into the front-axle cross member.
  3. Fasten transmission mounts on the front-axle cross member and on the body.
    NOTE: If the hexagon-head bolt (M10 x 90) was undone on the rear transmission support/transmission mount, it is important to tighten the front transmission support first, then the rear transmission support and the M10 x 90 screw on the rear transmission mount last.
