Removing and installing final drive/transmission housing double sealing ring: Installation

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Check seat of sealing ring in transmission housing for damage.
Thinly coat outer circumference and sealing lip of sealing ring with Vaseline.

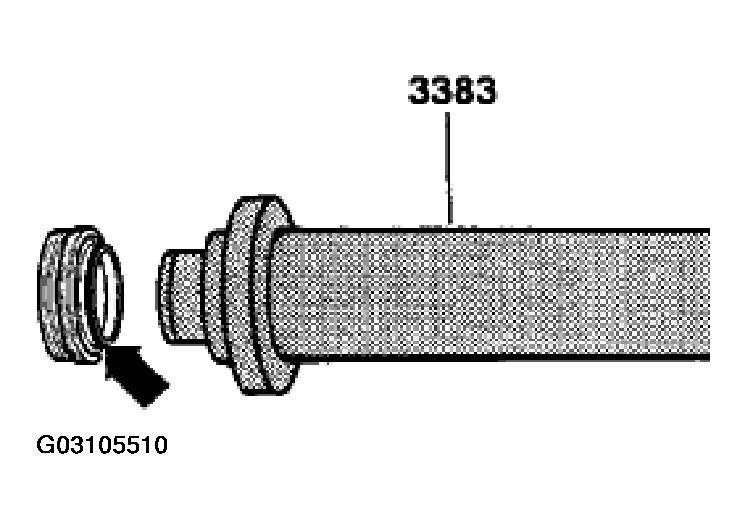

Push sealing ring onto the special tool so that the projecting sealing lip (arrow) faces the special tool.

Fig 1: Pushing Sealing Ring Onto Special Tool
Courtesy of PORSCHE OF NORTH AMERICA, INC.

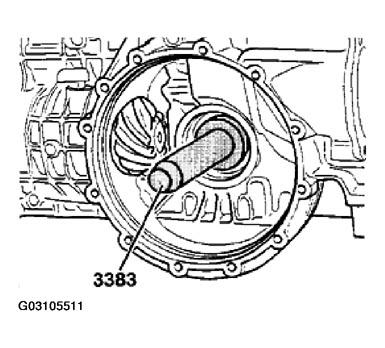

Drive sealing ring in to the stop with special tool 3383.

Fig 2: Installing Sealing Ring In To Stop With Special Tool 3383
Courtesy of PORSCHE OF NORTH AMERICA, INC.
