Removing and installing cover for final drive: Installation

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Install in reverse order, observing the following points:

Fit sealing ring without twisting and coat it with Vaseline.
Fit lid carefully and tighten screws uniformly in diagonally opposite sequence. Use special tool 9321 to aid assembly.

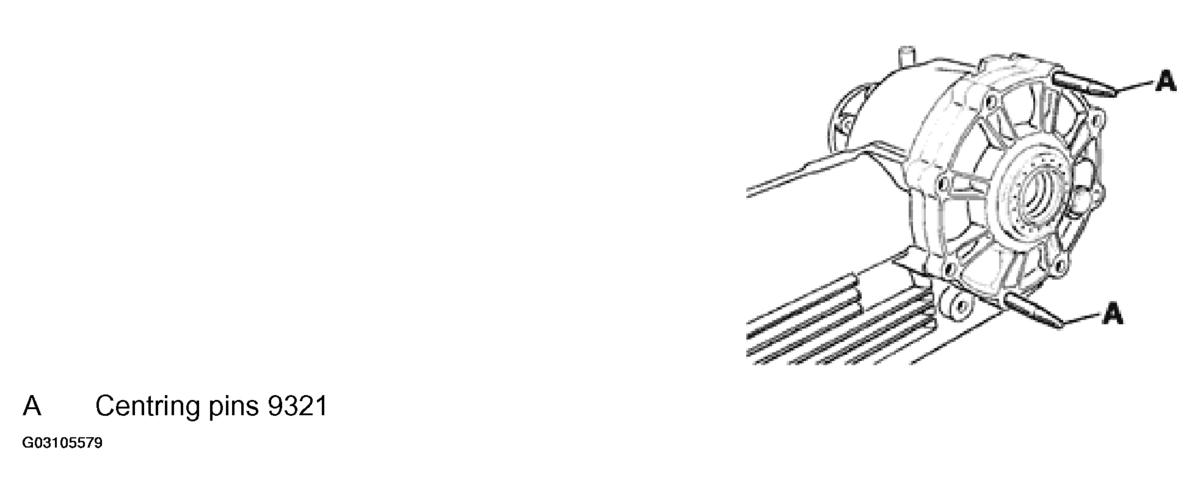

Fig 1: Fitting Lid For Front Final Drive
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Always replace the snap ring for the halfshaft flange. To do this, clamp the flange in the vice with protective jaws and press out the snap ring with the new snap ring "A".

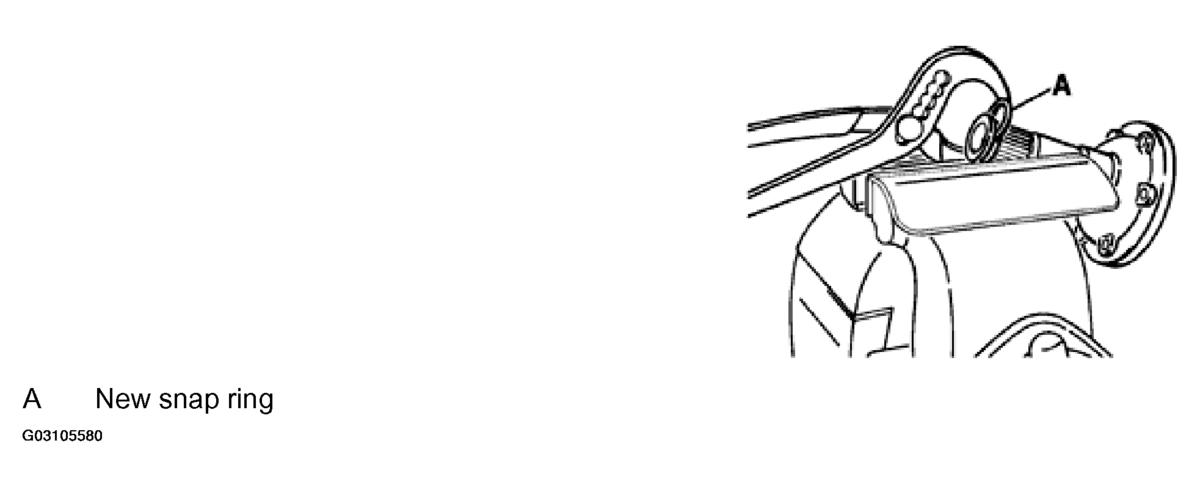

Fig 2: Installing Snap Ring For The Halfshaft Flange
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Grease the snap ring well and drive in the halfshaft flange using the special tools P254 and 9247/1.
Fill in oil (refer to Changing transmission oil in final drive ).
