Removing and installing cardan shaft: Installation

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Install in reverse order, observing the following points:

Always replace bellows for cardan shaft.

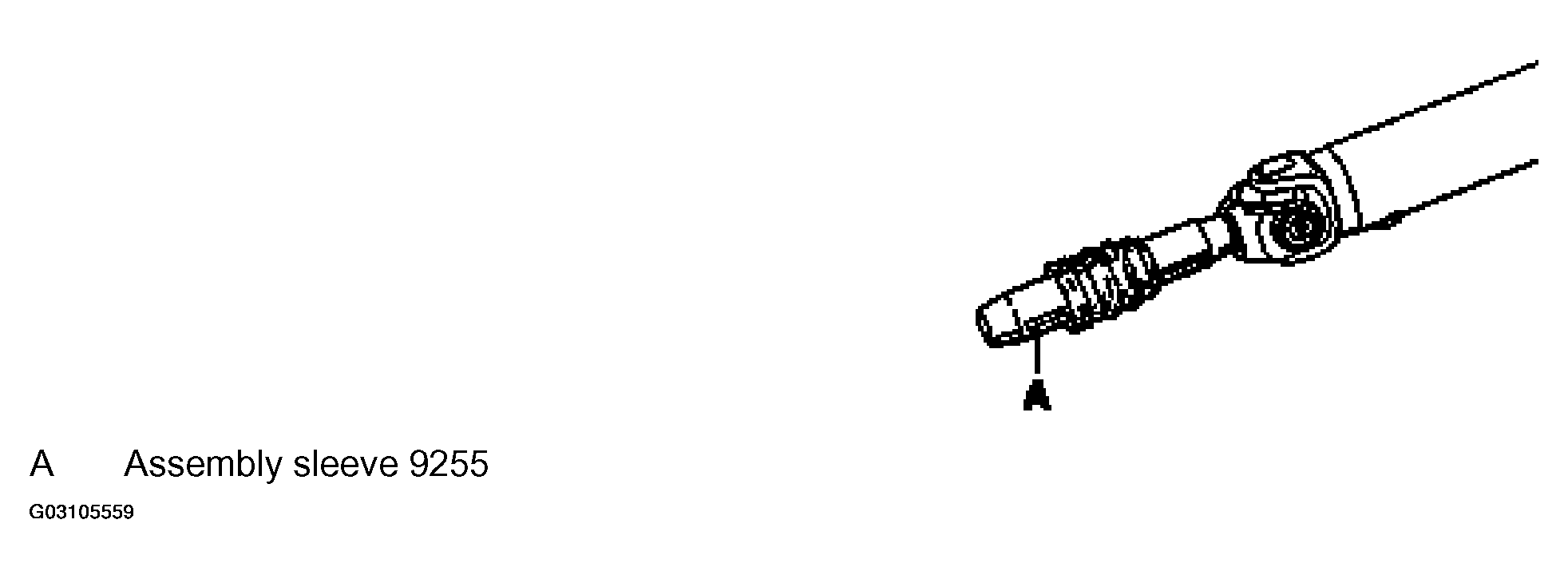

Slide assembly sleeve 9255 over the shaft splines, lightly lubricate sleeve with Vaseline and push on the bellows to the stop.

Fig 1: Sliding Assembly Sleeve Over Shaft Splines
Courtesy of PORSCHE OF NORTH AMERICA, INC.

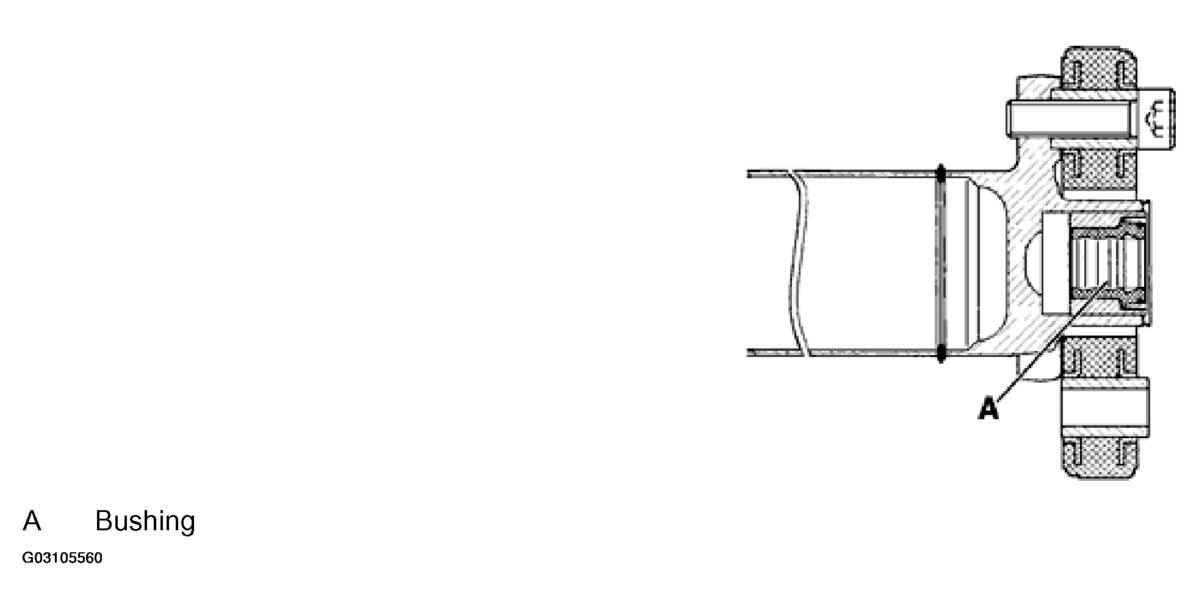

Grease bushing with approx. 3 g of Olista Longtime 3EP.

Fig 2: Locating Bushing
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Grease splines of the cardan shaft with Olista Longtime 3 EP. Slide shaft into the central shaft splines and fit on the transmission side.

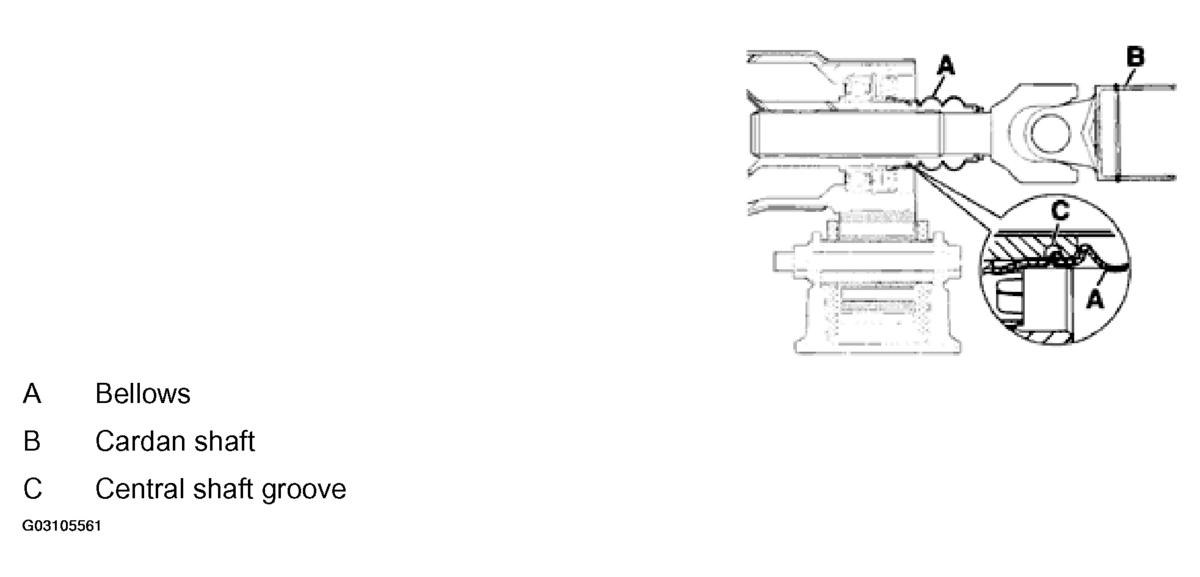

Push bellows forward until it engages in the groove of the central shaft. Check whether the bellows is seated properly by pulling on it.

Fig 3: Engaging Bellows In Groove Of Central Shaft
Courtesy of PORSCHE OF NORTH AMERICA, INC.
