Tightening torques

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

TIGHTENING TORQUES SPECIFICATIONS - ATF PAN CONTROL SCREW & DRAIN PLUG (AS OF MY 2002)

Location	Thread	Tightening torque Nm (ftlb.)

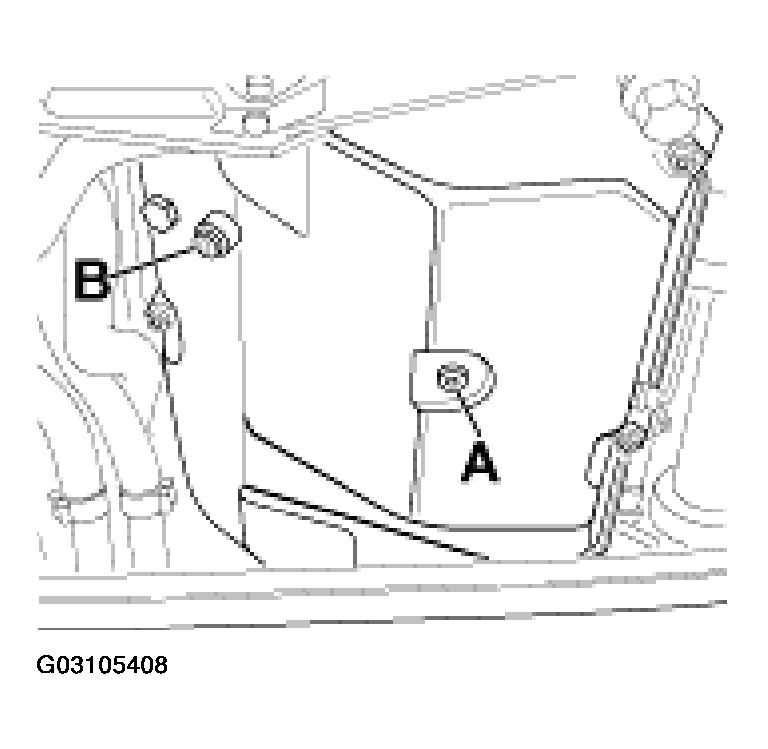

Drain plug on ATF pan-A- . See Figure .	M10	22 (16)
Control screw on ATF pan-B- . See Figure .	M10	22 (16)
Cap nut to charging valve	M14 x 1.5	40 (30)
