Removing and installing selector lever cable: Tools

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

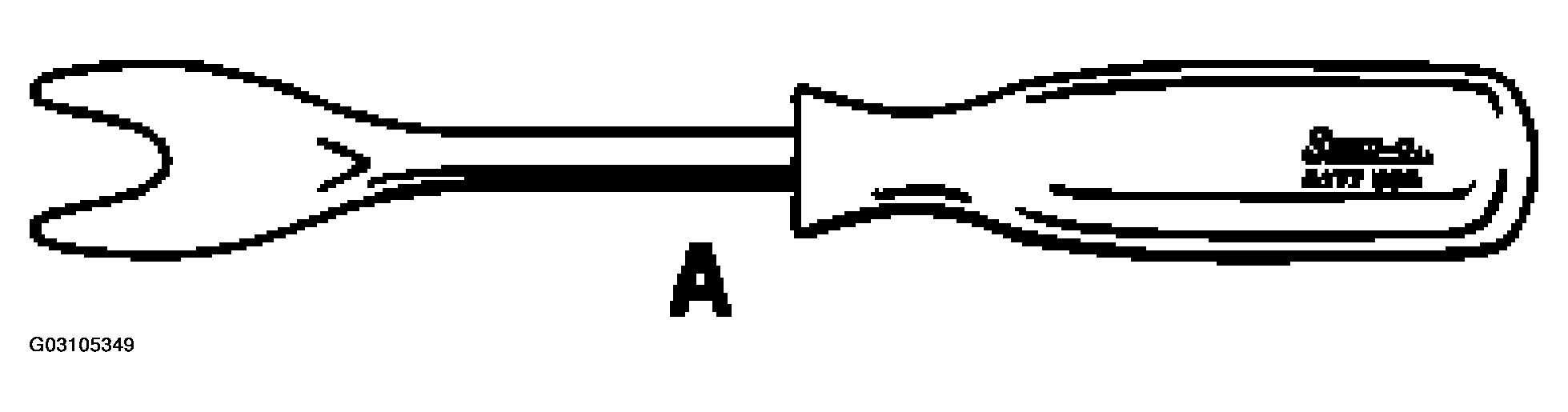

Fig 1: Identifying Selector Lever Special Tool

Courtesy of PORSCHE OF NORTH AMERICA, INC.

DESIGNATION AND EXPLANATION OF TOOL FOR SELECTOR LEVER CABLE

Item	Designation	Explanation
A	Removal tool	commercially available

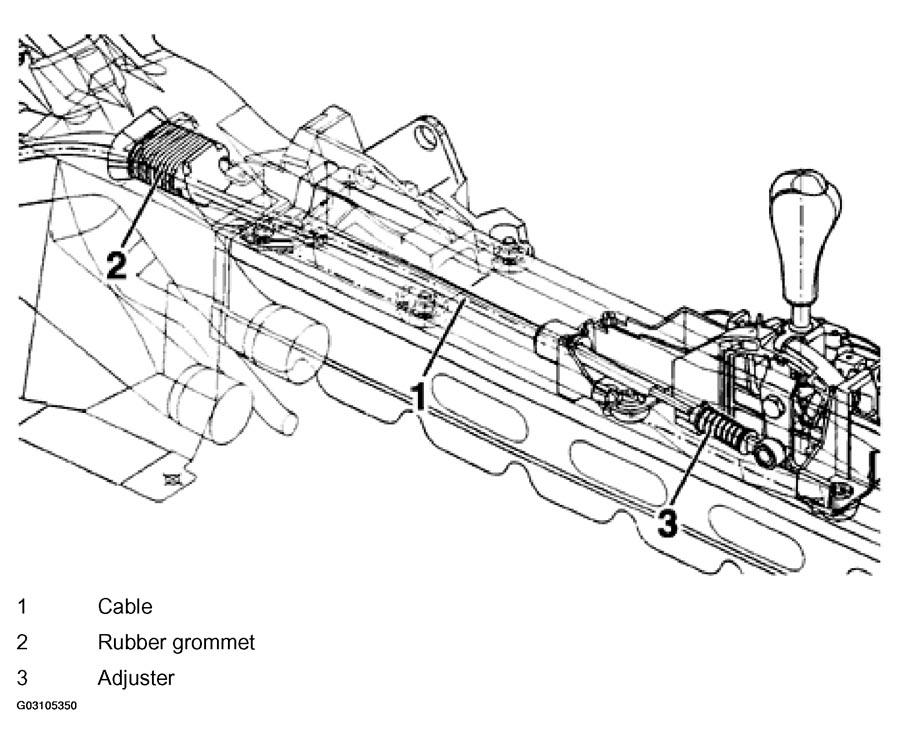

Fig 2: Identifying Selector Lever Cable Assembly

Courtesy of PORSCHE OF NORTH AMERICA, INC.

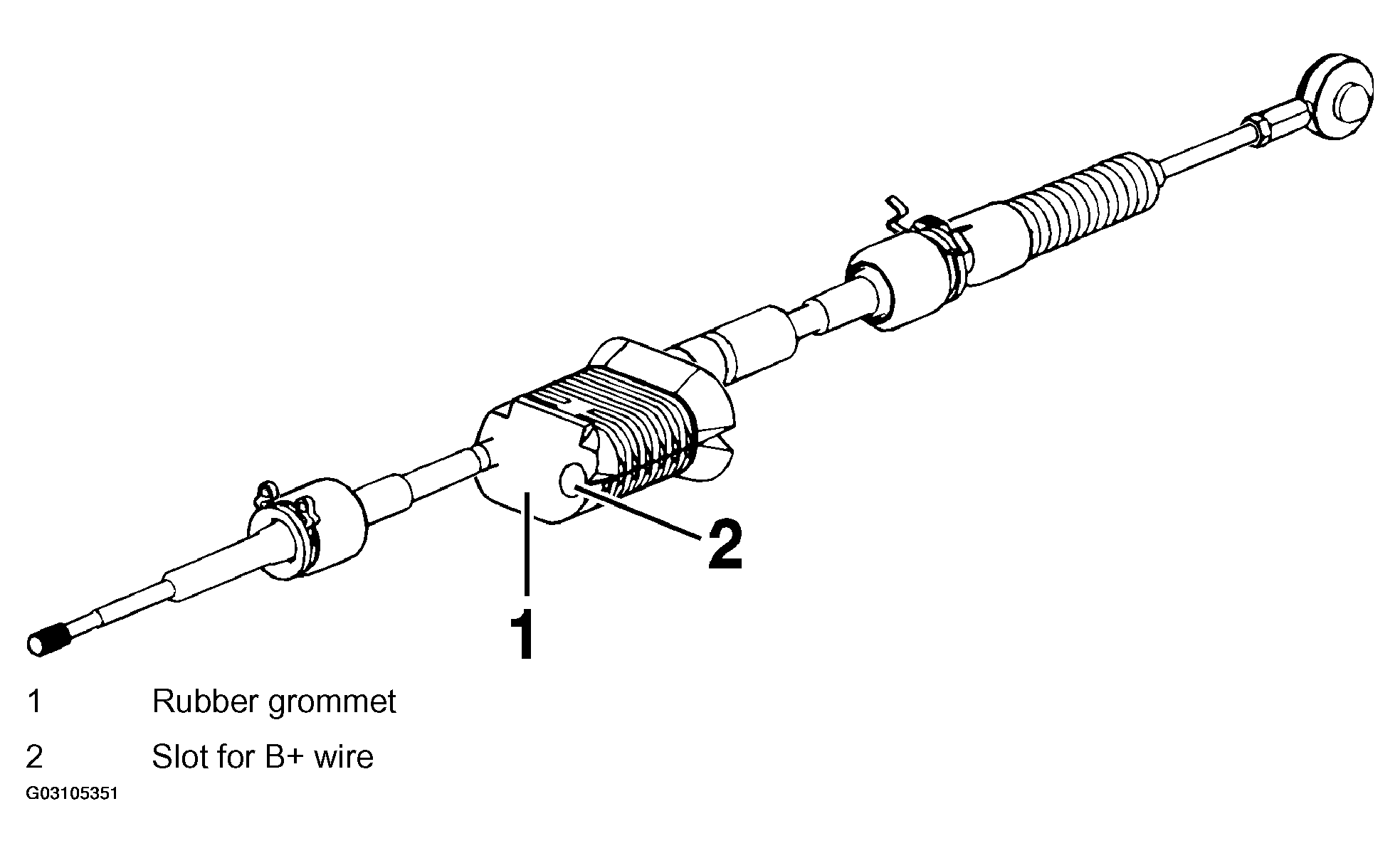

Fig 3: Identifying Rubber Grommet & Slot For B+ Wire

Courtesy of PORSCHE OF NORTH AMERICA, INC.

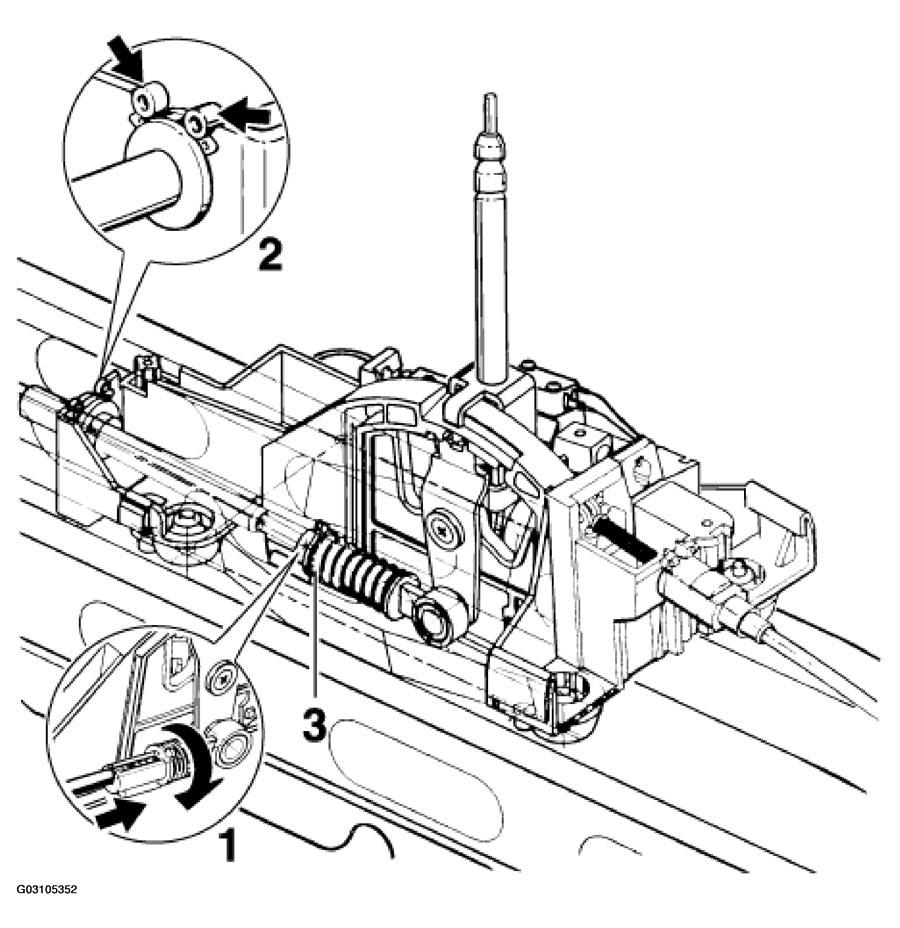

Fig 4: Removing And Installing Selector Lever Cable Components

Courtesy of PORSCHE OF NORTH AMERICA, INC.
