Removing and installing selector knob: Removal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Lever off locking button with an angled pipe. The locking button must be pressed so that the pipe section can be inserted between the shift lever and the locking button. To do this, turn the ignition key to "1" position.

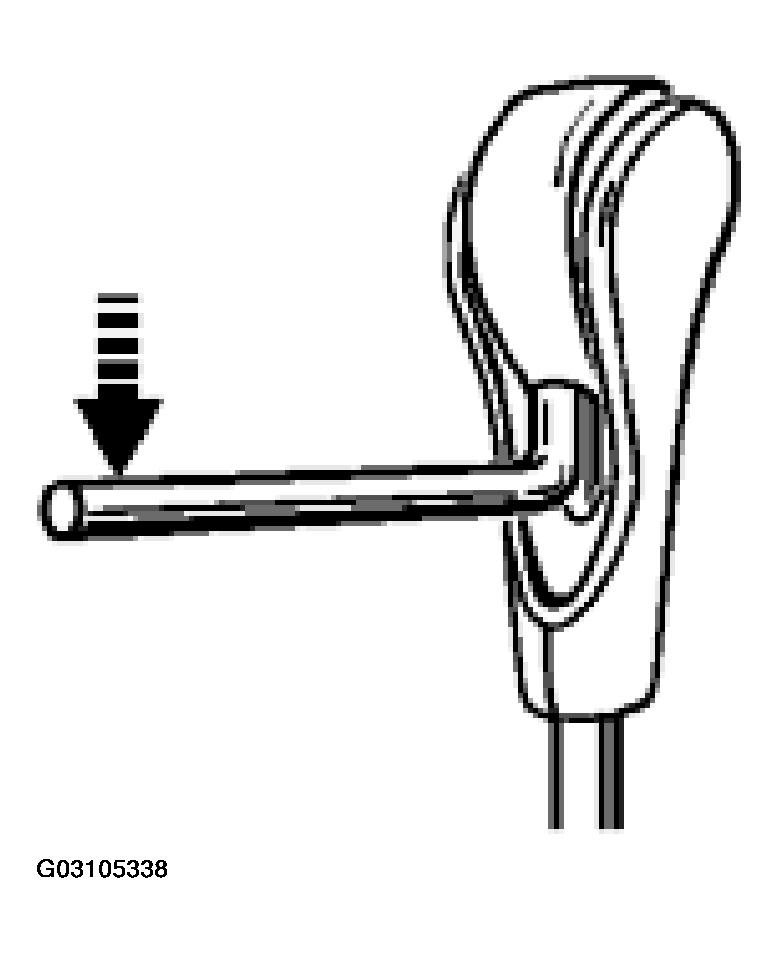

Fig 1: Removing Selector Knob Locking Button With Angled Pipe
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Remove the compression spring and spring clip and pull off the selector knob.

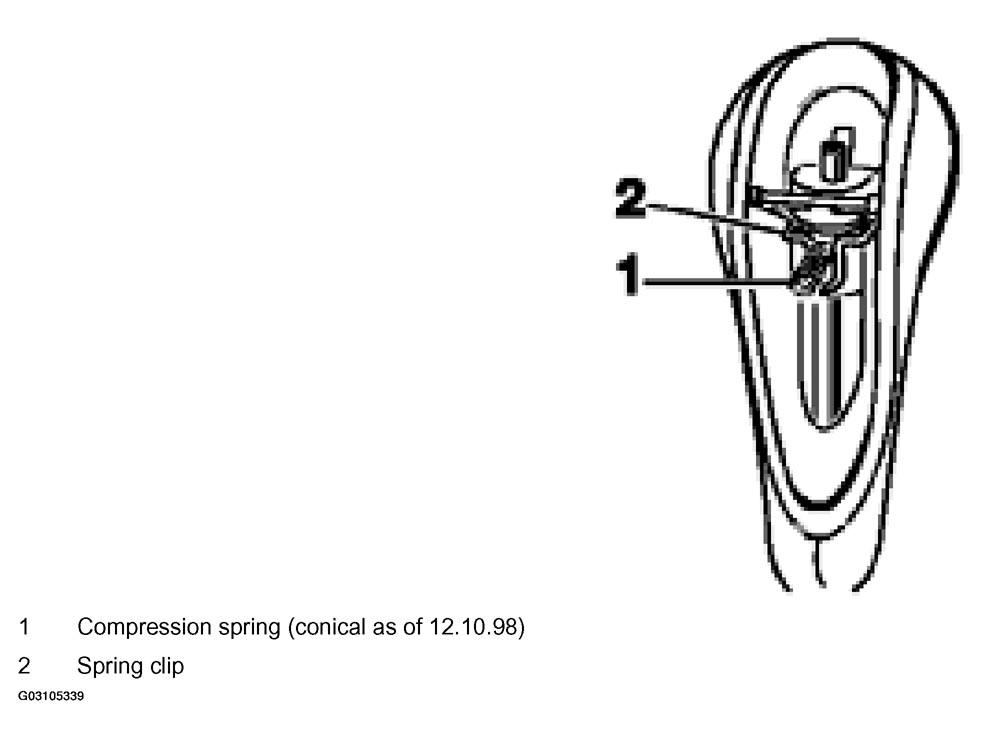

Fig 2: Removing Compression Spring, Spring Clip And Pulling Off Selector Knob
Courtesy of PORSCHE OF NORTH AMERICA, INC.
