Removing selector knob

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lever the locking button -A-  off with a suitable tool or finger. The locking button must be pressed so that the tool can be inserted between the selector lever -B-  and locking button.

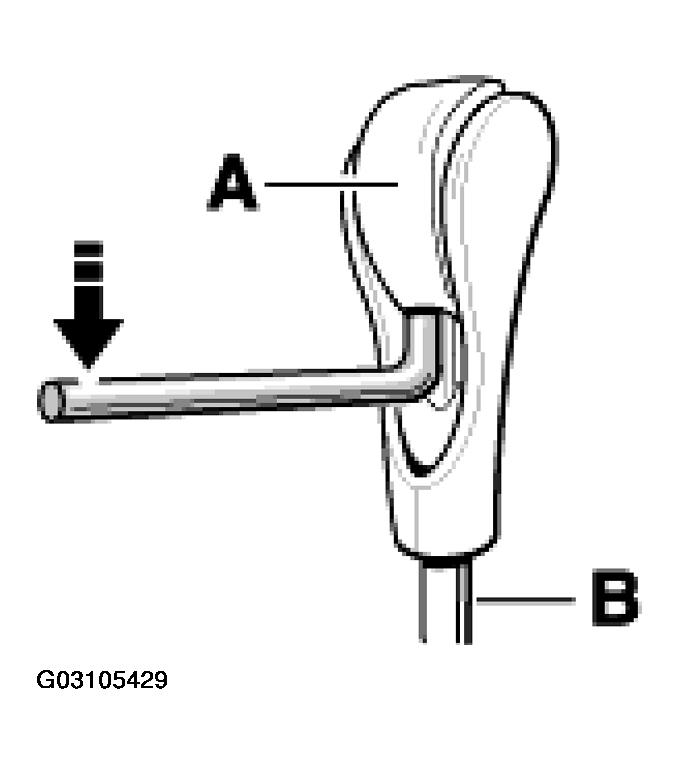

    Fig 1: Inserting Tool Between Selector Lever & Locking Button (As Of MY 2002)
    G03105429Courtesy of PORSCHE OF NORTH AMERICA, INC.
    NOTE:
    • The ignition key must be in position 1 before the locking button can be pressed.
  2. Remove compression spring -A-  and pull spring clip -B-  off toward the rear.

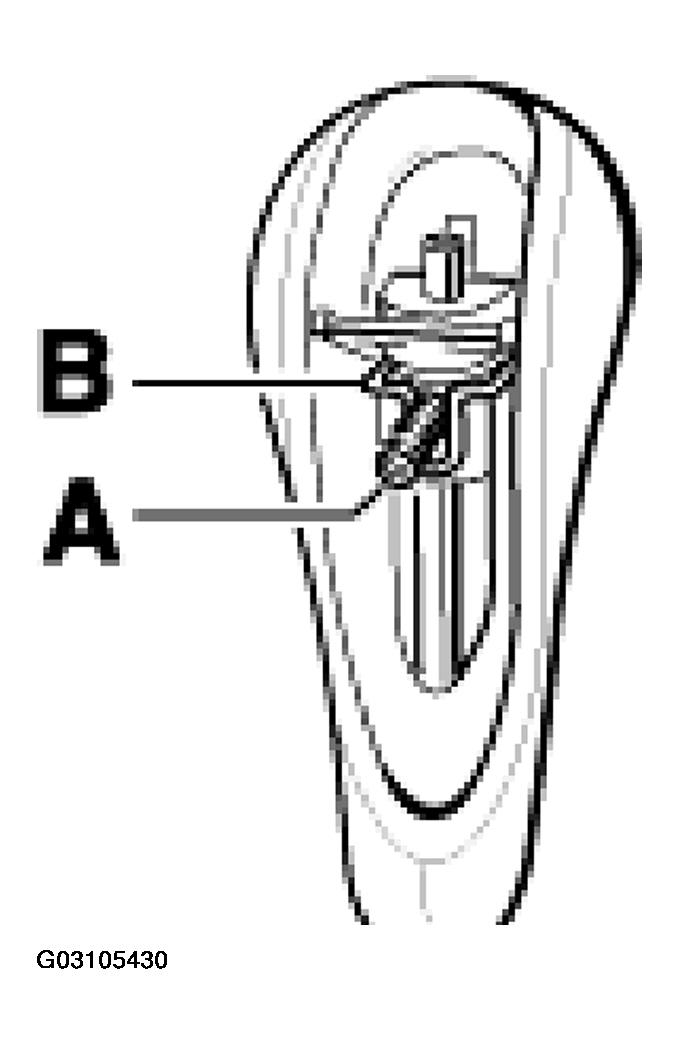

    Fig 2: Removing Compression Spring And Pull Spring Clip Off (As Of MY 2002)
    G03105430Courtesy of PORSCHE OF NORTH AMERICA, INC.
  3. Pull selector lever up and off.
