Removing and installing sealing ring for selector shaft: Removal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove hydraulic control unit (see REMOVING AND INSTALLING HYDRAULIC CONTROL UNIT ).
  2. Disengage selector lever cable at transmission selector lever.
  3. Drive out roll pin (1) until the selector lever can be pulled off from the shaft.

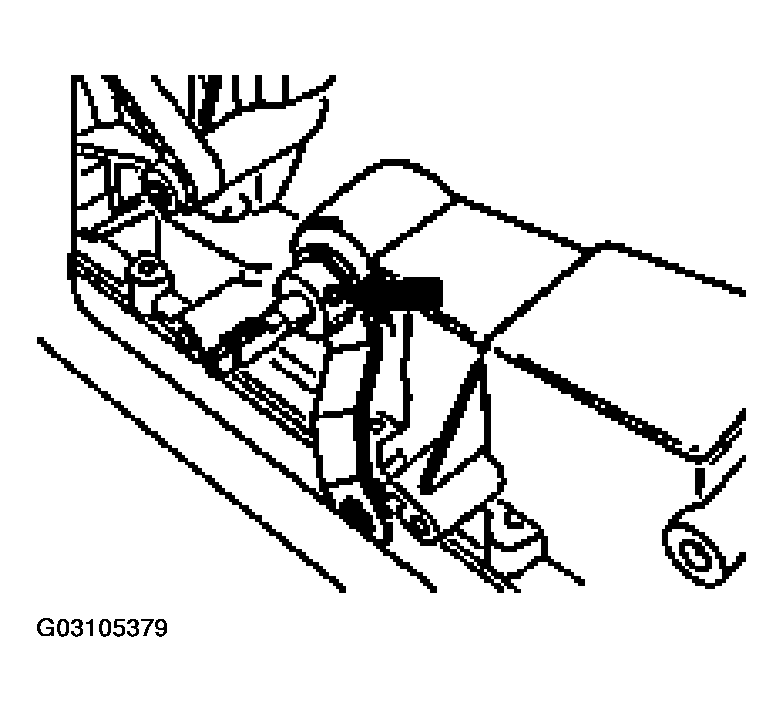

    Fig 1: Driving Out Selector Lever Roll Pin
    G03105379Courtesy of PORSCHE OF NORTH AMERICA, INC.
  4. Pierce sealing ring with small screwdriver and pull out.
