Removing and installing sealing ring for selector shaft: Installation

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Thinly coat outer circumference and sealing lip of sealing ring with Vaseline.
Drive in sealing ring with special tool 3385 as far as the mounting face.

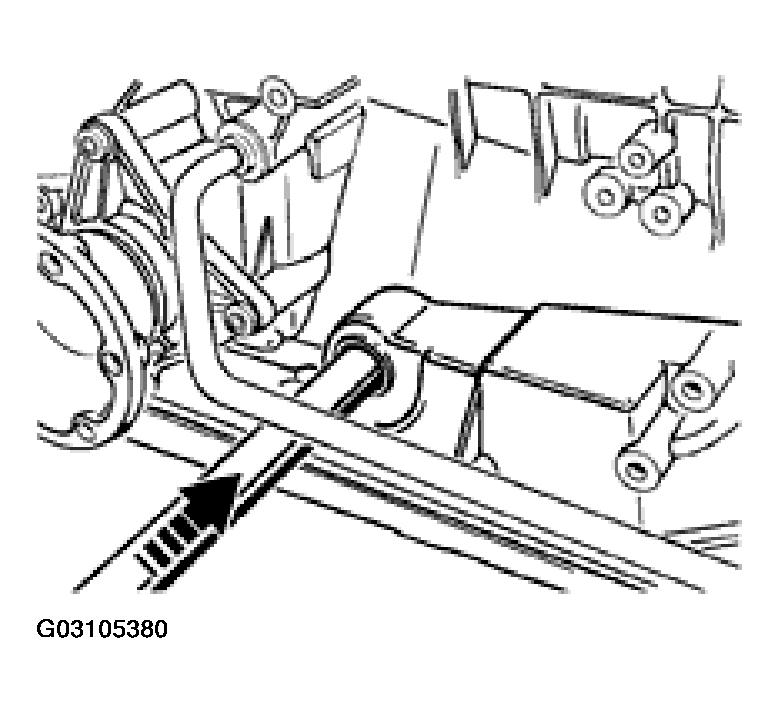

Fig 1: Driving In Sealing Ring With Special Tool 3385
Courtesy of PORSCHE OF NORTH AMERICA, INC.
