Removing and installing multi-function switch: Removal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unclip, release and disconnect cable connection to the multi-function switch.

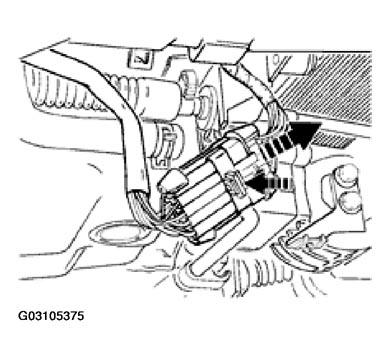

    Fig 1: Disconnecting Cable Connection To Multi-Function Switch
    G03105375Courtesy of PORSCHE OF NORTH AMERICA, INC.
  2. Remove ATF line. Collect emerging ATF at the same time.

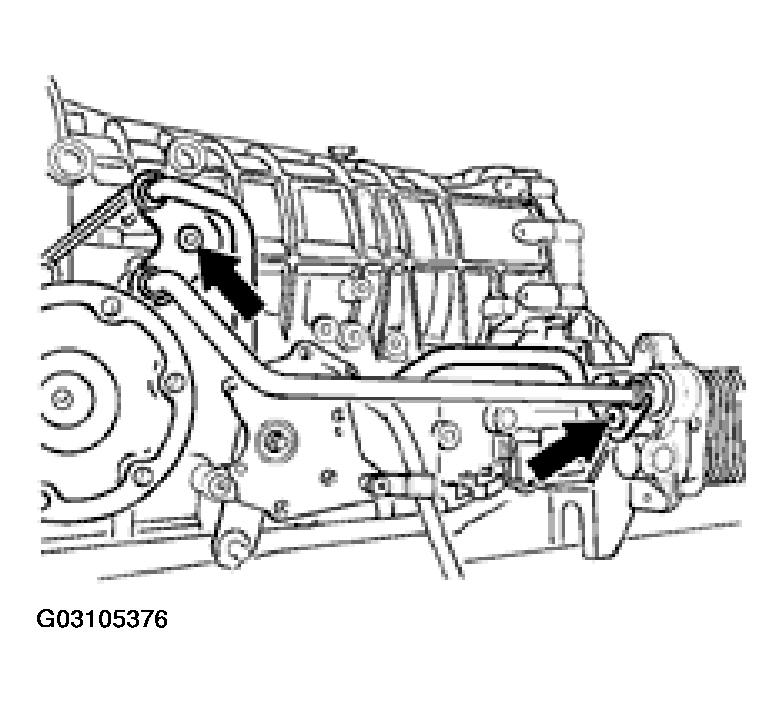

    Fig 2: Removing ATF Line
    G03105376Courtesy of PORSCHE OF NORTH AMERICA, INC.
  3. Unscrew fastening screws and pull switch off the selector shaft.
