Removing and installing multi-function switch: Installation

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Put multi-function switch on the selector shaft. The flat point on the serrations in the switch "A" must lie against the flat point on the selector shaft "B".
    NOTE: Place multi-function switch on the selector shaft. Do not tilt or use force: you may damage the switch contacts.

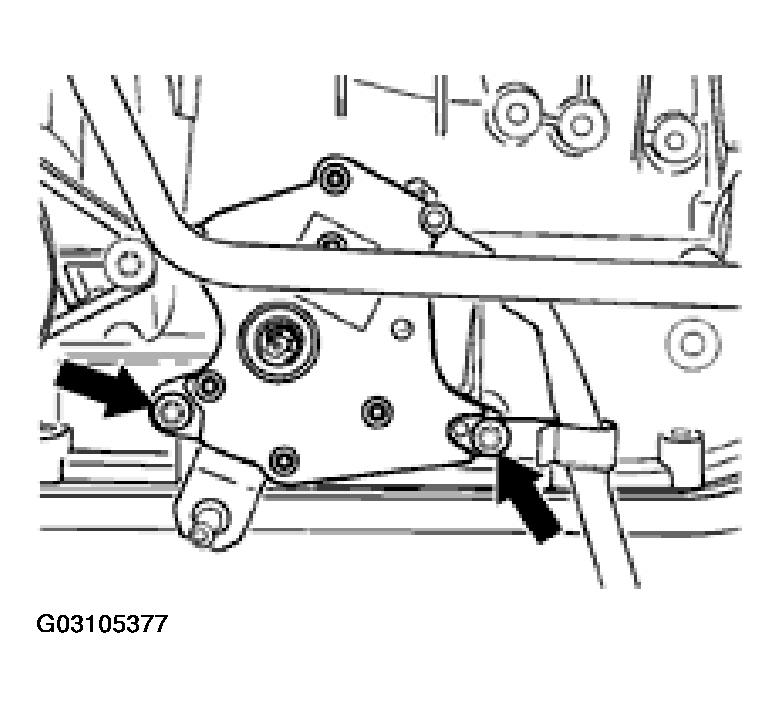

    2. Fig 1: Putting Multi-Function Switch On The Selector Shaft
    G03105377Courtesy of PORSCHE OF NORTH AMERICA, INC.
  2. Turn switch until the fitting bore on the switch housing can be put on the dowel pin on the transmission housing.
  3. Replace sealing rings for ATF lines and install ATF line.
