Notes on removal and installation: Removal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Defective toroidal sealing rings at inner oil tube let ATF enter the differential, which becomes overfilled, and oil emerges from the vent of the differential.
  • In general, a removed oil tube should be replaced.
  • The oil tube must be inserted only with special tool 3381. Otherwise there is a danger of leakage due to bending of the oil tube.
  1. Remove hydraulic control unit.
  2. Lever out oil tube with a screwdriver.

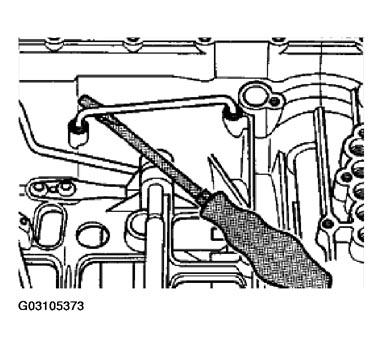

    Fig 1: Levering Out Oil Tube With Screwdriver
    G03105373Courtesy of PORSCHE OF NORTH AMERICA, INC.
