Removing control module

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Remove front seat. Refer to REMOVING AND INSTALLING FRONT SEAT, - AS OF MY 1996 .
Remove the side lining at rear right. Refer to REMOVING AND INSTALLING SIDE-PANEL LINING, - AS OF MY 1996 .
Remove right sill. Refer to REMOVING AND INSTALLING INNER SILL (PASSENGER'S SIDE) .

Unscrew lower fastening screw for the seat belt.
Disengage floor covering at the support and lay it in the vehicle interior.

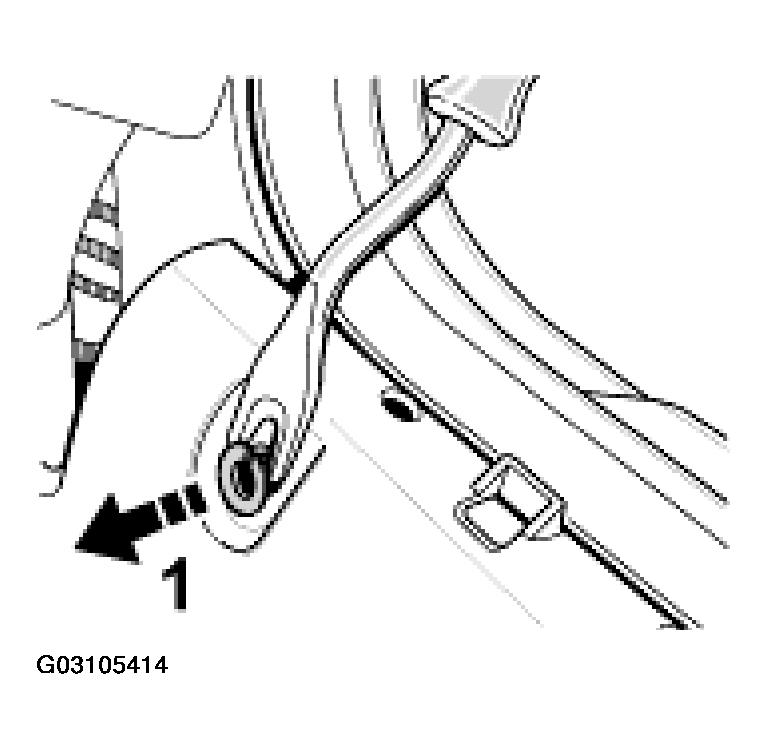

Unlock locating peg -1- of the support using the commercially available removal tool. See Tools .

Fig 1: Unlocking Locating Peg Of The Support (As Of MY 2002)
Courtesy of PORSCHE OF NORTH AMERICA, INC.

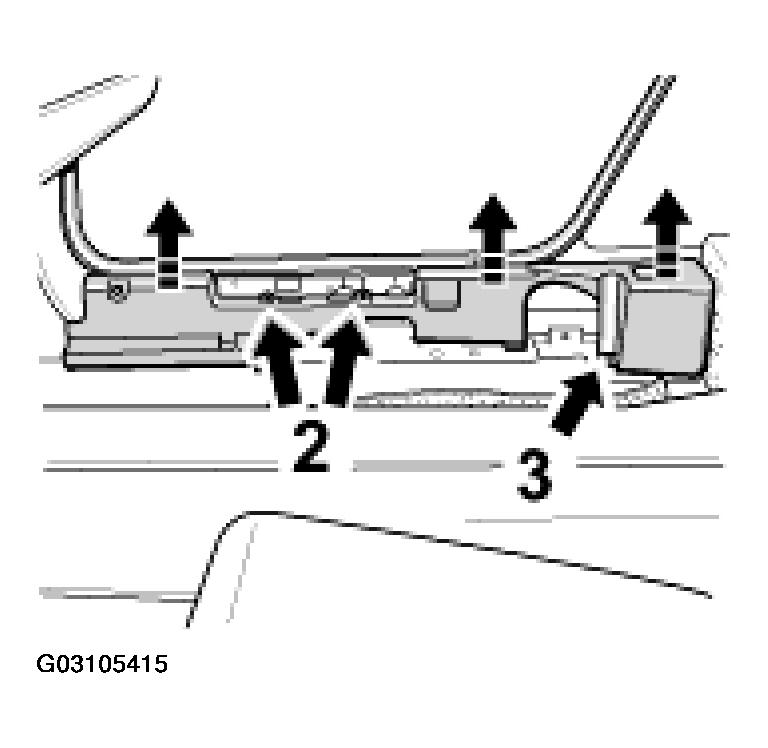

Unscrew fastening screws -2- and nuts -3- and carefully pull the support up and out of the retaining points.

Fig 2: Removing Support Fastening Screws And Nuts (As Of MY 2002)
Courtesy of PORSCHE OF NORTH AMERICA, INC.

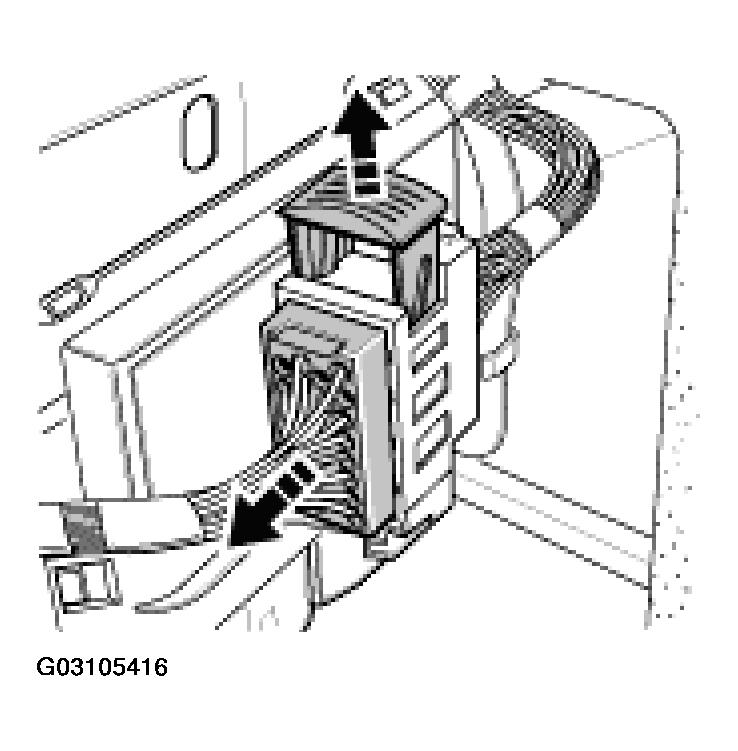

Unlock and disconnect the electrical plug connection.

Fig 3: Disconnecting Electrical Plug Connection (As Of MY 2002)
Courtesy of PORSCHE OF NORTH AMERICA, INC.

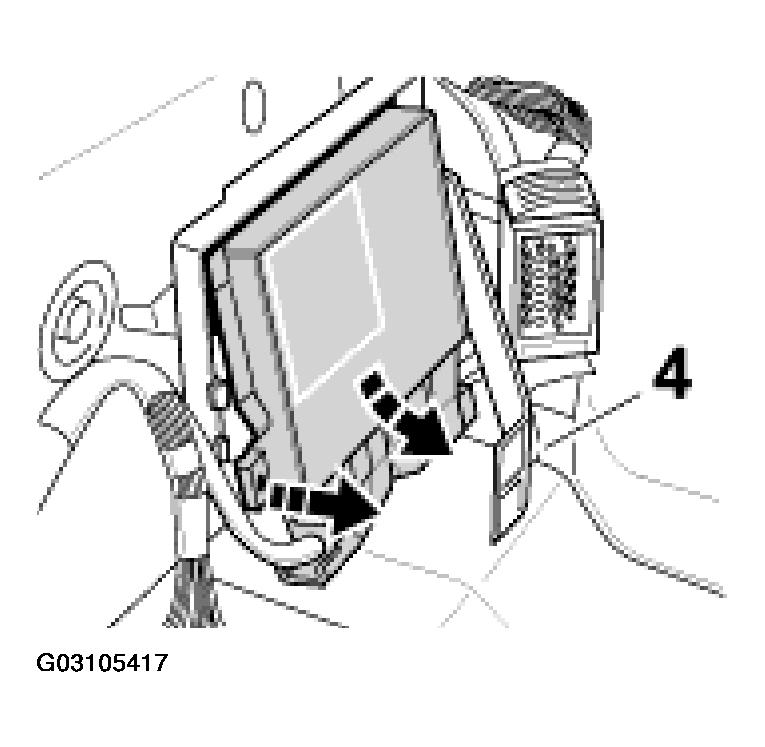

Detach holder -4- .

Fig 4: Detaching Control Module Holder (As Of MY 2002)
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Pull control module out of the holder and pull it out downward at an angle.

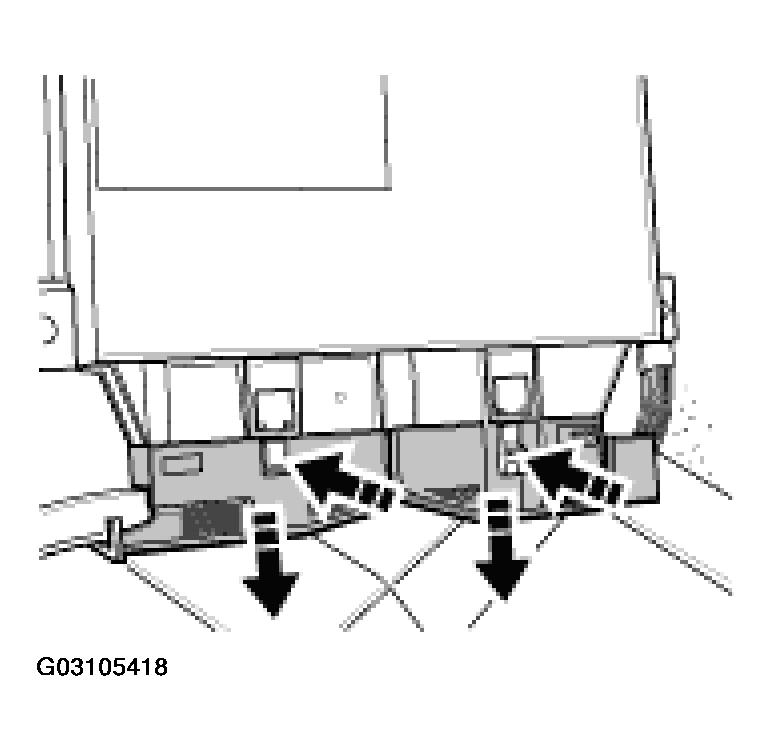

Press locking tabs -arrow- and disconnect plug connections from the control module.

Fig 5: Disconnecting Plug Connections From The Control Module (As Of MY 2002)
Courtesy of PORSCHE OF NORTH AMERICA, INC.
