Installing control module

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

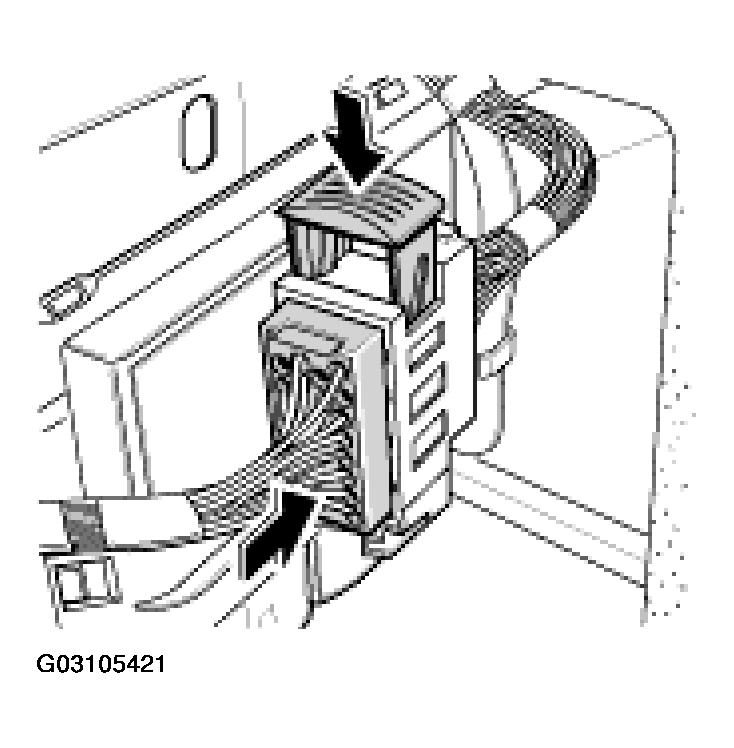

Plug in the electrical plug connection.

Fig 1: Installing Electrical Plug Connection On Control Module (As Of MY 2002)
Courtesy of PORSCHE OF NORTH AMERICA, INC.

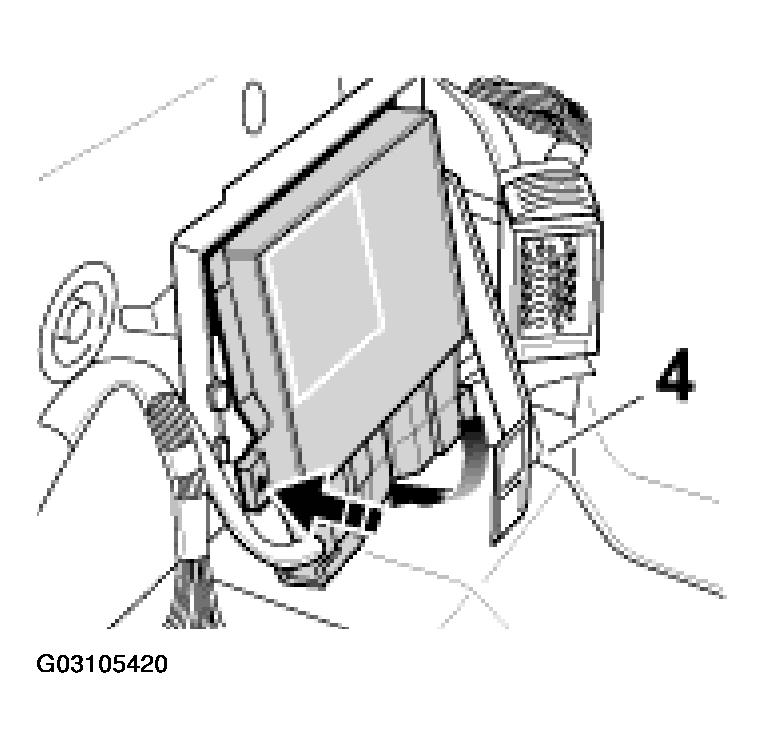

Insert control module into the holder and engage holder -4- .

Fig 2: Inserting Control Module Into Holder And Engage Holder (As Of MY 2002)
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Plug in the electrical plug connection.

Fig 3: Installing Electrical Plug Connection (As Of MY 2002)
Courtesy of PORSCHE OF NORTH AMERICA, INC.

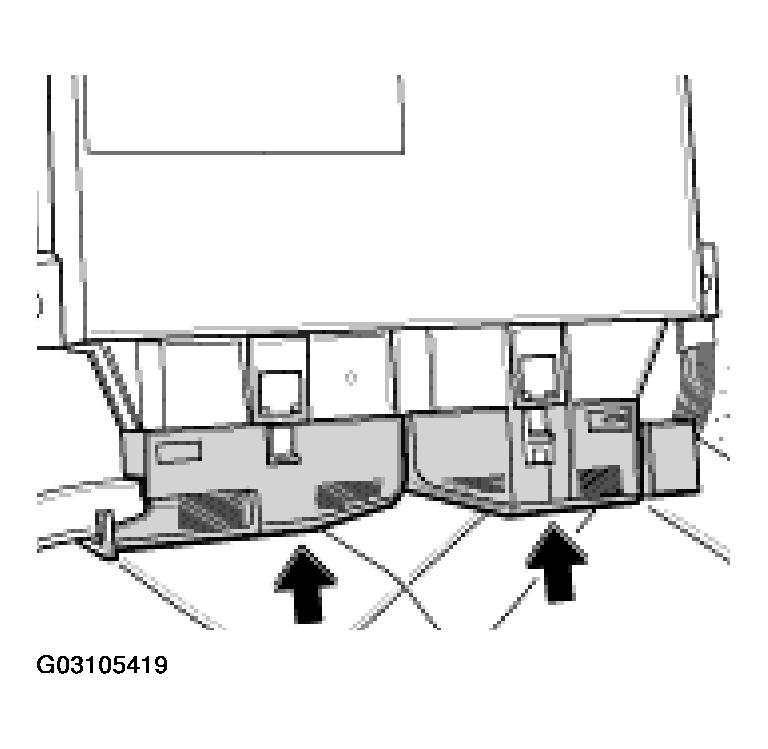

Position the support and engage in lower side member.

Fig 4: Positioning Support In Lower Side Member (As Of MY 2002)
Courtesy of PORSCHE OF NORTH AMERICA, INC.

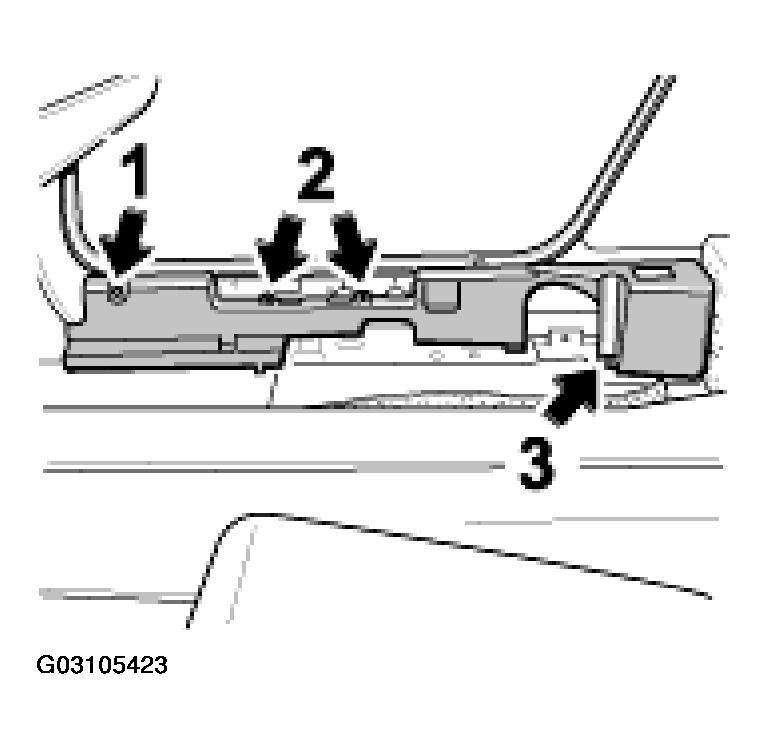

Push in the locating peg -1- of the support and check that it is sitting correctly.

Fig 5: Pushing In Locating Peg Of Support (As Of MY 2002)
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Tighten the fastening nuts -3- and the fastening screws -2- . Tightening torque -2- 7.2 Nm (5.5ftlbs.). See Fig 5 .
Lay the floor covering over the support and engage.
- Using the Porsche System Tester, read out any faults present in the POSIP menu and erase.
- Insert sill. Refer to REMOVING AND INSTALLING INNER SILL (PASSENGER'S SIDE) .
- Mount the side lining at rear. Refer to REMOVING AND INSTALLING SIDE-PANEL LINING, - AS OF MY 1996 .
- Installing front seat. Refer to REMOVING AND INSTALLING FRONT SEAT, - AS OF MY 1996 .
