Checking ATF

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The stipulated fluid level is extremely important for perfect functioning of the automatic transmission. It is correct if there is a slight amount of ATF escaping at the control screw bore -B- at temperatures between 30 °C and 40 °C.

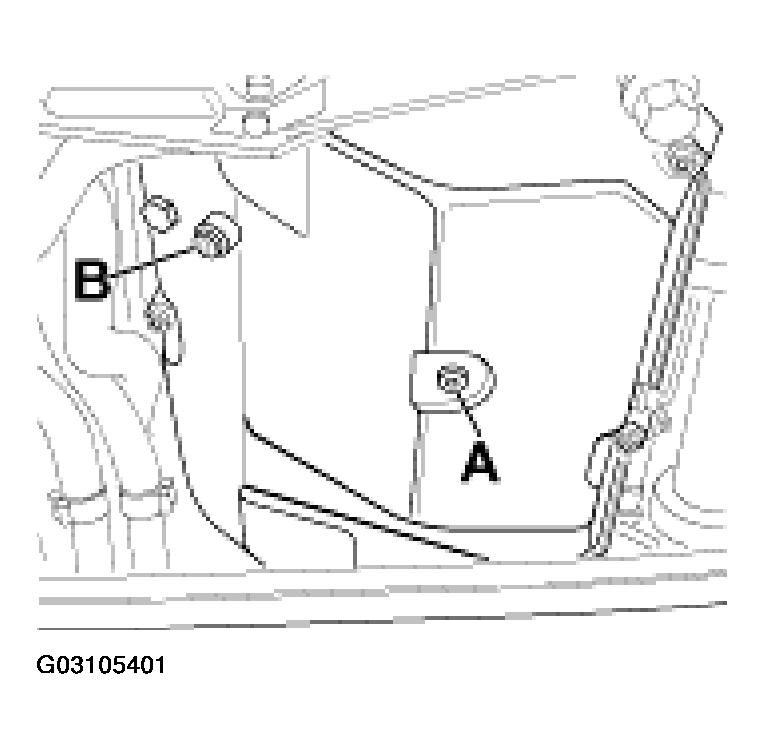

Fig 1: Identifying Control Screw (As Of MY 2002)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Testing conditions:

The transmission must not be in the reduced driving program.
The ATF temperature must be between 30 °C and 40 °C. An ATF inspection at an insufficient ATF temperature causes over-filling and an inspection at an excessive ATF temperature causes insufficient filling.
Selector lever in position "P" and engine idling.
The air-conditioning system and the heater must be switched off.
The vehicle must stand horizontally.

Place oil collection pan under the transmission.
Connect the Porsche System Tester 2 and call up the ATF temperature.
NOTE: The ATF temperature must not be higher than 40 °C at the start of the test.
Move selector lever to position "P" and allow engine to idle.
WARNING: Danger of injury from emerging ATF fluid! ATF fluid can cause burns and chemical burns to the eyes! Wear protective goggles.
Unscrew control screw -B- . If ATF escapes from the control bore and if the ATF temperature is 30 °C to 40 °C, the ATF level is in order.

Fig 2: Removing Control Screw (As Of MY 2002)
Courtesy of PORSCHE OF NORTH AMERICA, INC.
If no oil escapes from the control bore even though approx. 40 °C has been reached, the ATF must be topped up. (See Topping up ATF .)
NOTE: The control screw must be closed no later than when an ATF temperature of 45 °C is reached.
Screw in ATF control screw with a new sealing ring
Tightening torque: 22 Nm (16 ftlb.)
