Adjusting selector lever cable

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Move selector lever to "P" position.
Lever off cable on transmission lever using a commercially available removal tool .

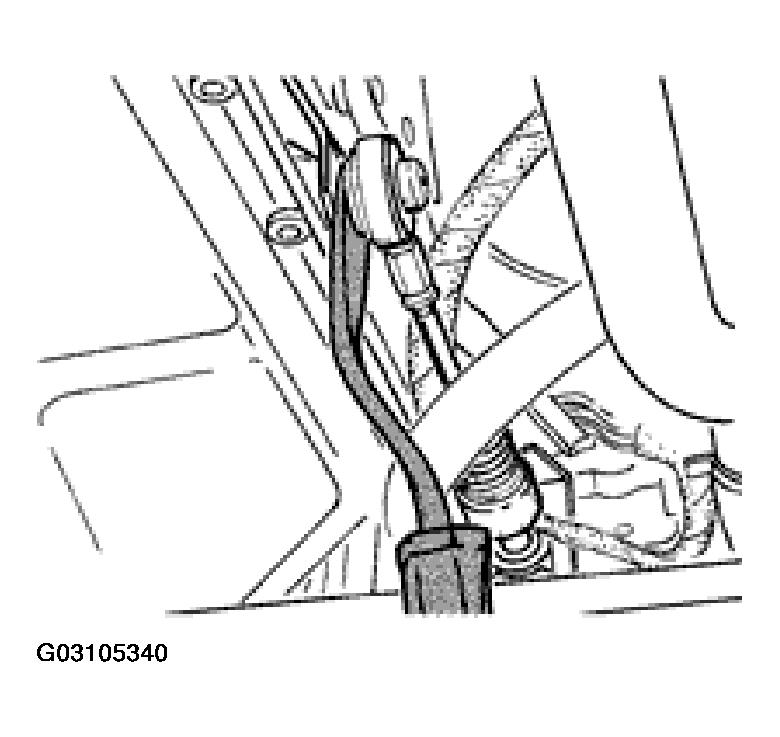

Fig 1: Removing Cable From Transmission Lever
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Disengage cable at adjuster. To do this, slide the locking sleeve (1) forward and turn it clockwise to removal position.

Fig 2: Sliding Locking Sleeve Forward
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Check installation dimension of the end piece It must be 12 +/- 0.5 mm.

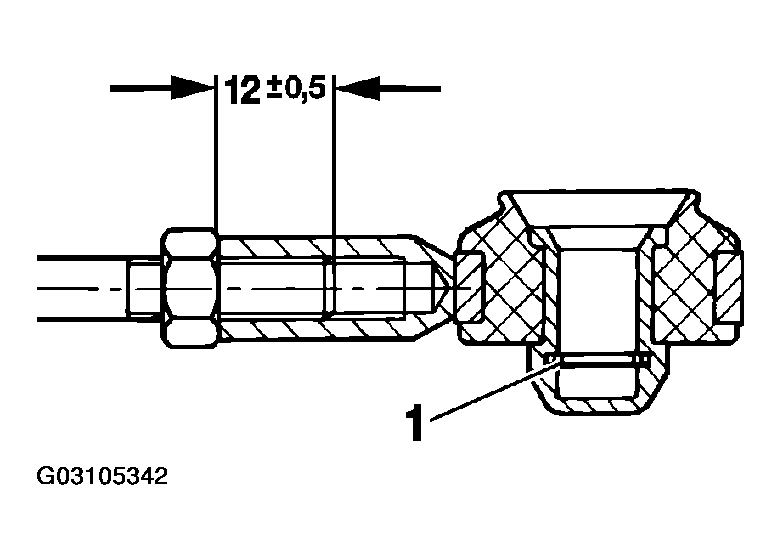

Fig 3: Checking Installation Dimension Of End Piece
Courtesy of PORSCHE OF NORTH AMERICA, INC.
1. Snap ring
Press end piece onto the transmission lever using a pair of pliers.

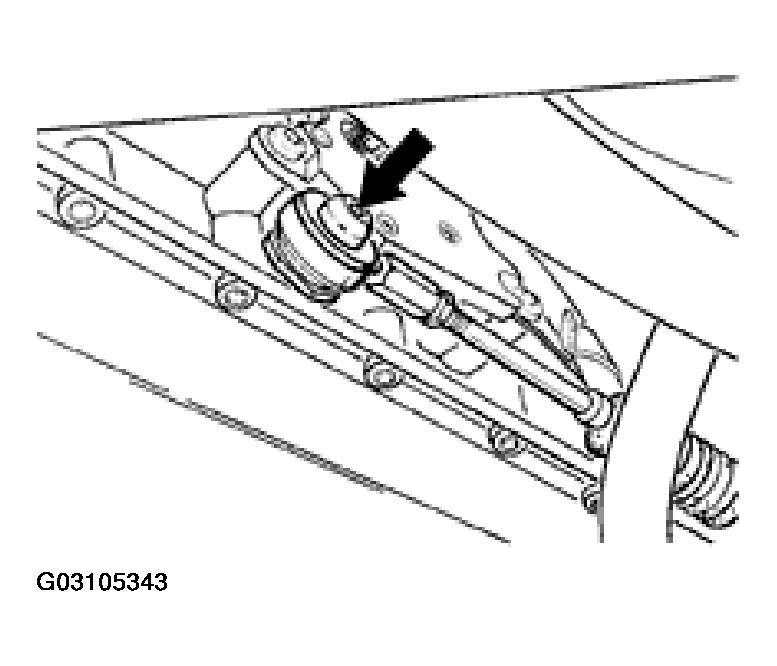

Fig 4: Pressing End Piece Onto Transmission Lever
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Engage cable on the selector console into the open adjuster (1) and close the adjuster (3). The locking sleeve must move to the end position automatically.

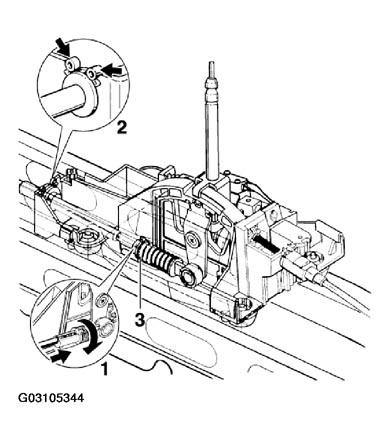

Fig 5: Engaging Cable Into Open Adjuster
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Check adjustment. To do this, select all gears and check that the gear is indicated in the right-hand instrument cluster. Also change gate from "D" to "M". A straight movement must be possible without catching.
NOTE: Minor corrections can be made on the cable end piece.
