Changing transmission oil

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Filling capacity: 2.7 L

NOTE: Use only oils approved by Porsche. Refer to APPROVED TRANSMISSION OILS TRANSMISSION .

Unscrew the oil filler and drain screws and drain the oil with the vehicle horizontal.

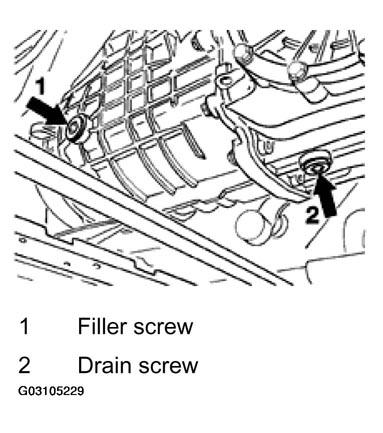

Fig 1: Locating Transmission Oil Filler And Drain Screws
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Clean the drain and filler screws.
Fill with oil up to the bottom edge of the oil filler opening.
Tighten the drain and filler screws with 30 Nm (18 ftlb.).
