Removing the torque-converter sealing ring

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Removing the torque converter. See Removing and installing torque converter (as of MY 2002)  .
  2. Lever out the sealing ring using the lever VW 681.

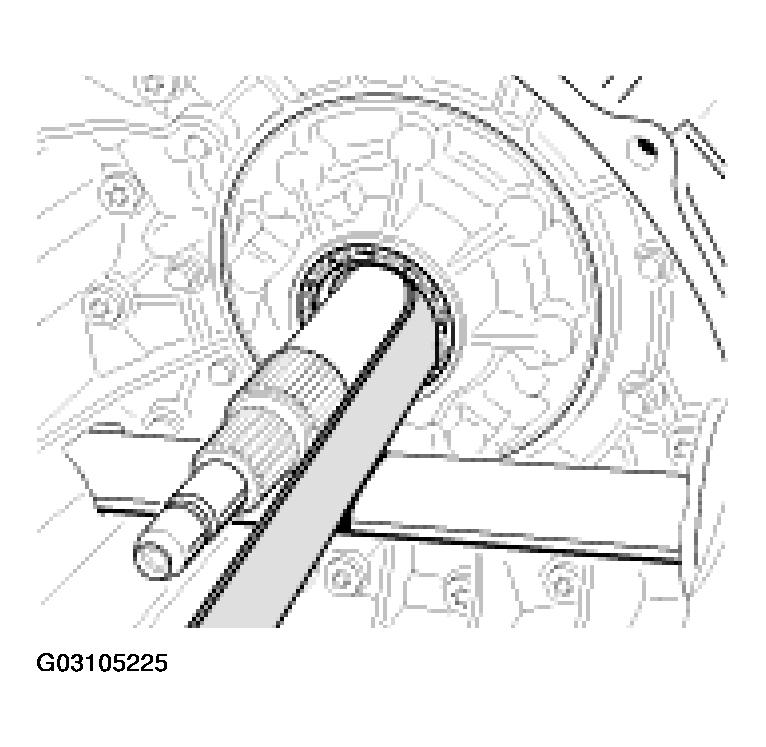

    Fig 1: Levering Out Sealing Ring Using Lever VW 681 (As Of MY 2002)
    G03105225Courtesy of PORSCHE OF NORTH AMERICA, INC.
