Installing the torque-converter sealing ring

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Thinly coat sealing lip of sealing ring with Vaseline and drive sealing ring home as far as the mounting face with pressure piece 9670.

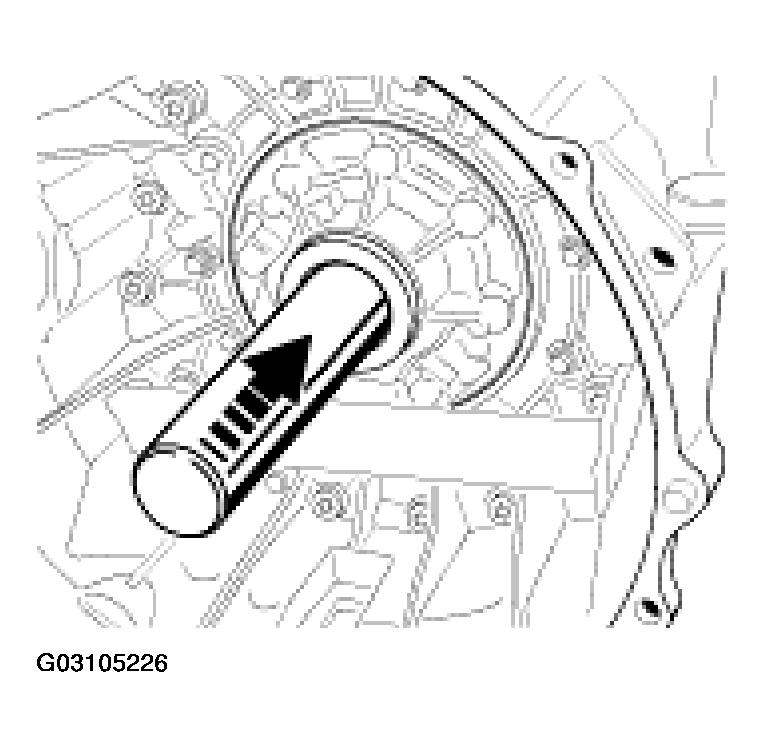

Fig 1: Installing Torque-Converter Sealing Ring (As Of MY 2002)
Courtesy of PORSCHE OF NORTH AMERICA, INC.
