Installing converter housing

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fit converter housing. To do this, screw in 8 connecting screws between the engine and the converter housing. See Fig 1 .

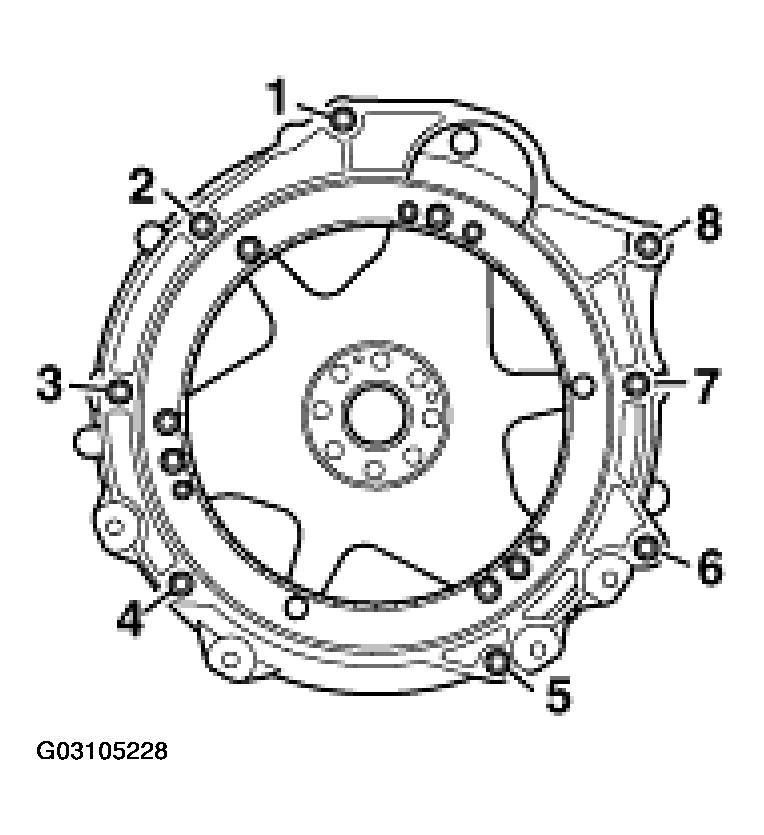

    Fig 1: Identifying Connecting Screws Between Engine And Converter Housing (As Of MY 2002)
    G03105228Courtesy of PORSCHE OF NORTH AMERICA, INC.

    Obtain the tightening torques for the screws from the tightening torque table.

  2. Refit transmission. See REMOVING AND REFITTING THE TRANSMISSION (MY 2002) .
