Removing and installing the clutch pedal: Notes

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

The description below applies to left-hand drive vehicles.
On right-hand drive vehicles, the clutch pedal lever is located directly next to the brake pedal (separated by the steering outer tube in the case of left-hand drive vehicles). Assembly/disassembly for right-hand drive vehicles is similar to the procedure for left-hand drive vehicles.
Before the start of disassembly work on the pedals, the clutch boost spring must be fixed with a cotter pin (arrow at No. 5). Refer to Fig 1.

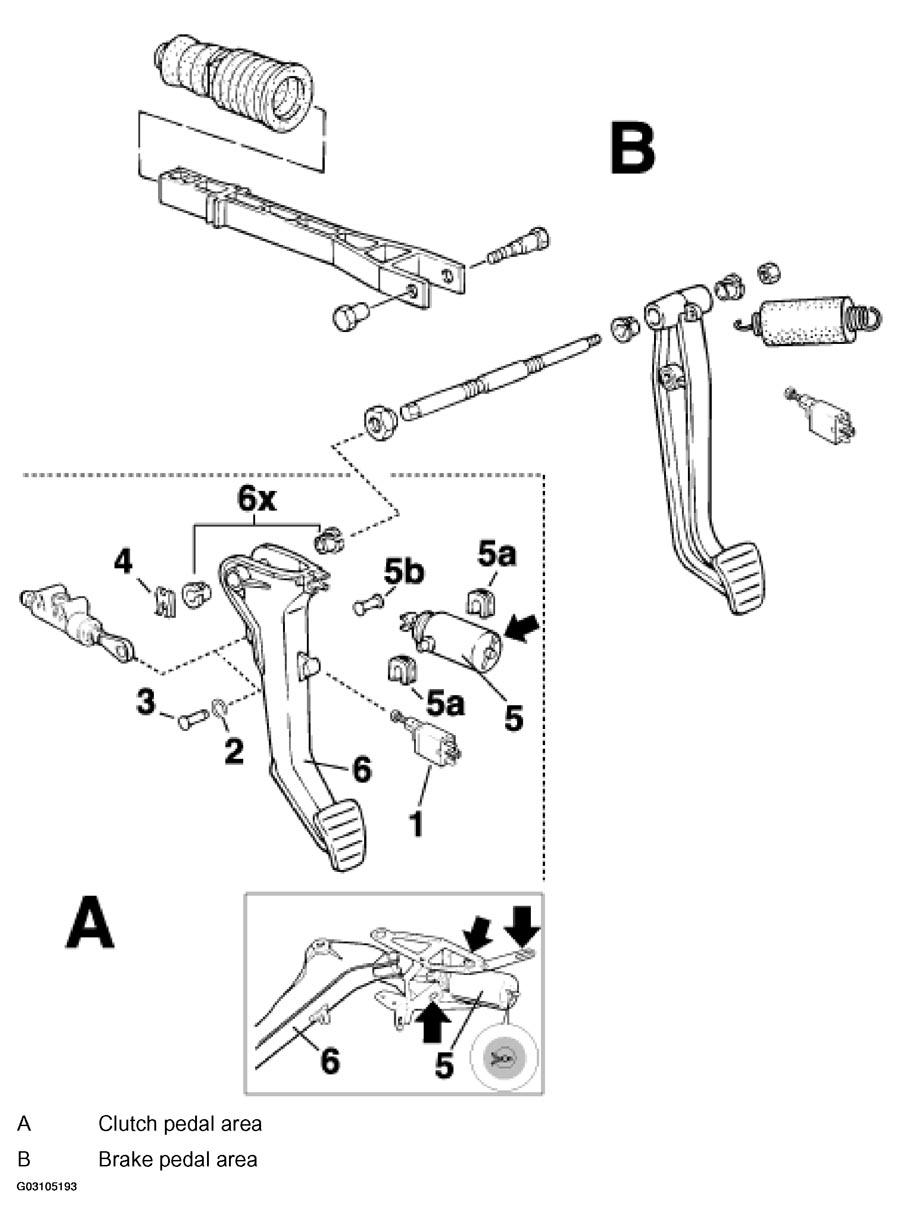

Fig 1: Identifying Clutch Pedal Components

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Important: secure the cotter pin (bend it over).

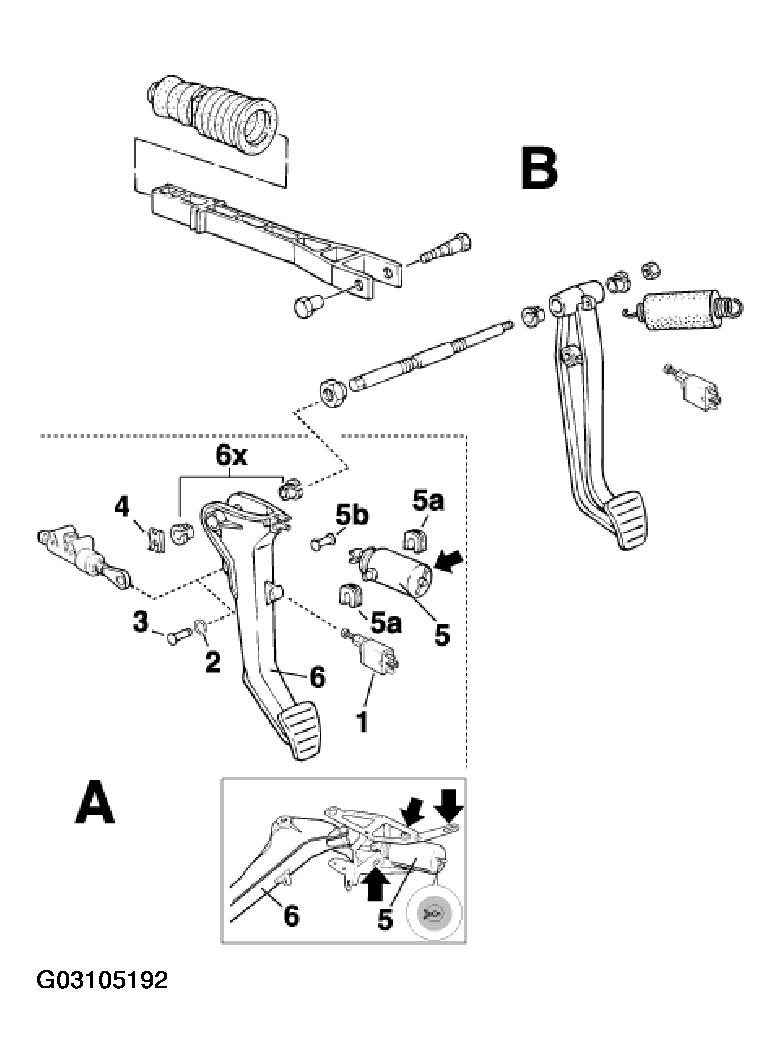

Fig 2: Identifying Clutch Pedal Components

Courtesy of PORSCHE OF NORTH AMERICA, INC.

CLUTCH AND BRAKE PEDAL REMOVAL & INSTALLATION PROCEDURE

NO.

Designation

Qty.

Removal

Installation

Switch

Release by turning 90 ° and pull out of the installation opening

Before installation, pull operating plunger out of the switch as far as it will go

Retaining clip

Replace if necessary

Clamp

Replace

Boost spring with bracket

Secure boost spring with cotter pin (arrow at No. 5) Insert the cotter pin (diameter 3 mm) into the assembly bore and bend over ends.
Then undo the three fastening nuts of the bracket (arrows) and remove the boost spring together with bracket and clutch pedal lever (No. 6)

Install the assembly consisting of bracket, boost spring and clutch pedal lever.
Ensure correct allocation when replacing the boost spring.⁽²⁾ Observe assembly and adjustment specification for the bracket (assembly instructions under Installation, step 3)

Boost spring bearing

Replace if necessary. It is important to note instructions regarding grease⁽²⁾

It is important to note instructions regarding grease⁽²⁾

Clutch pedal lever

Remove together with boost spring No. 5 and bracket

Bushings

Remain in the clutch pedal lever

Check, replace if necessary. Lubricate. Use specified grease⁽¹⁾

⁽¹⁾	Lubricate the bushings of the clutch and brake pedals (6X and 14X) with "Optimol, Optitemp LG 2" grease, Part No.: 000.043.203.37 (delivery quantity: 80 g tube).

⁽²⁾	Information can be found in Repair Group 30 - Serv. No. 30 Clutch boost spring: allocation and grease specification. To see when lubrication of the boost spring bearing points is not permitted, please also refer to step 2.1 and 2.2 in Installation .
