Assembly instructions: Removal

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove manual transmission. Refer to REMOVING TRANSMISSION .
  2. Fasten toothed segment (special tool 9538/1) on the crankcase half (cylinder bank 1 - 3) with hexagon-head bolt M12 x 50.

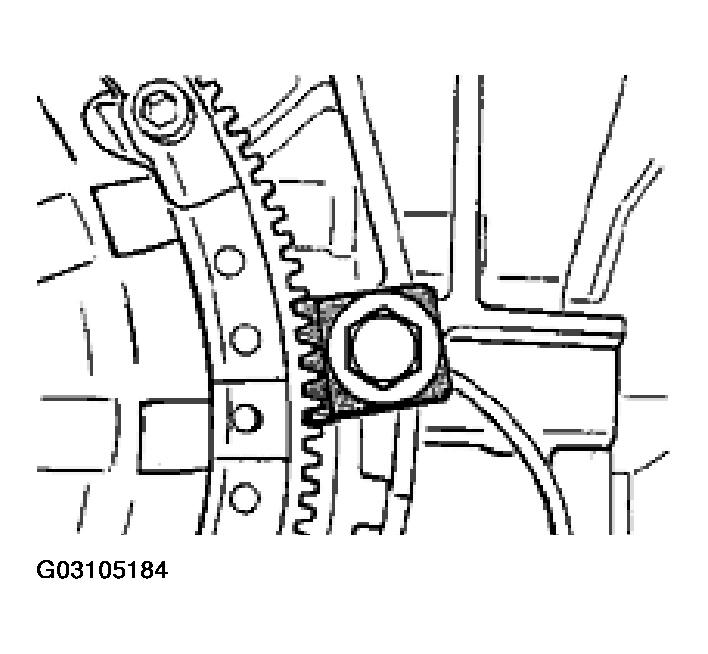

    Fig 1: Fastening Toothed Segment With Hexagon-Head Bolt
    G03105184Courtesy of PORSCHE OF NORTH AMERICA, INC.
  3. Detach thrust plate.
    NOTE: In order to avoid deformation of the thrust plate housing, always loosen screws in several stages and in diametrically opposite sequence.
  4. Remove thrust plate and drive plate.
