Bleeding the clutch system: Filling/bleeding

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Fill up the brake fluid reservoir with new brake fluid up to its top edge. Attach bleeding device to reservoir.
NOTE: Use only new DOT 4 brake fluid.

This brake fluid is available under the following part numbers:

Container quantity 1 litre = 000.043.203.66

Container quantity 30 litres = 000.043.203.67

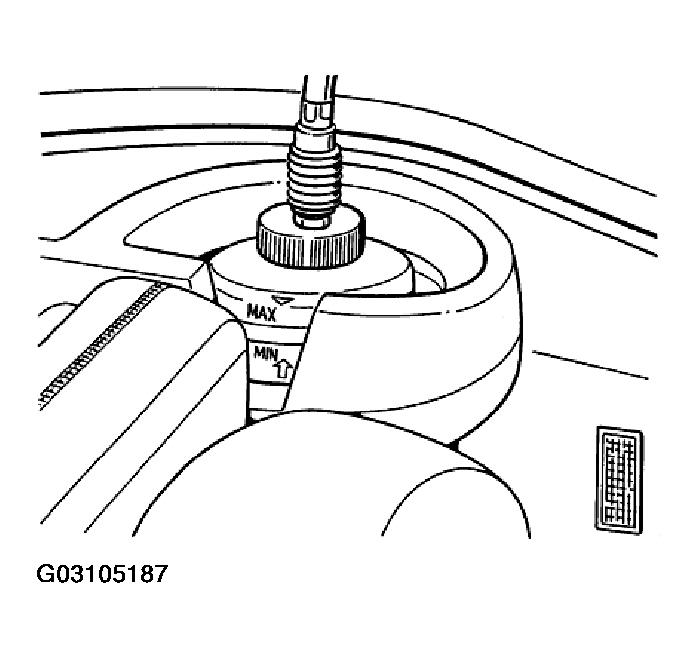

Fig 1: Attaching Bleeding Device To Reservoir

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Move pedal to the fully depressed position. When doing so, guide the pedal by hand so that it does not move forward abruptly.
Switch on the bleeding device. Bleed pressure approximately 1.5 bar.
The bleeder valve on the clutch slave cylinder must be opened until clear, bubble-free brake fluid emerges. Use a collecting bottle for precise examination of the emerging brake fluid for cleanliness and freedom from bubbles.

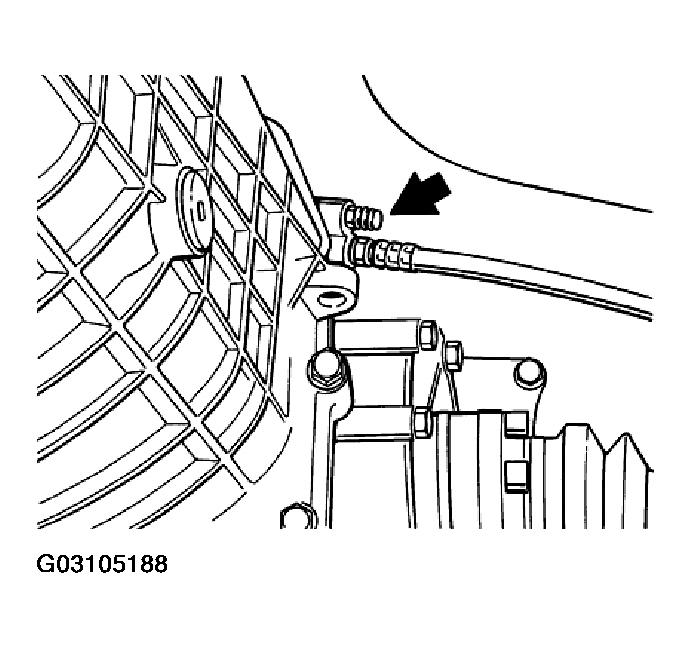

Fig 2: Identifying Clutch Slave Cylinder Bleeder Valve
Courtesy of PORSCHE OF NORTH AMERICA, INC.

NOTE: If the system was open previously (for example, for component replacement), the minimum filling or bleeding time must be 30 seconds.
Switch off and close bleeder device. Correct brake fluid level if necessary.

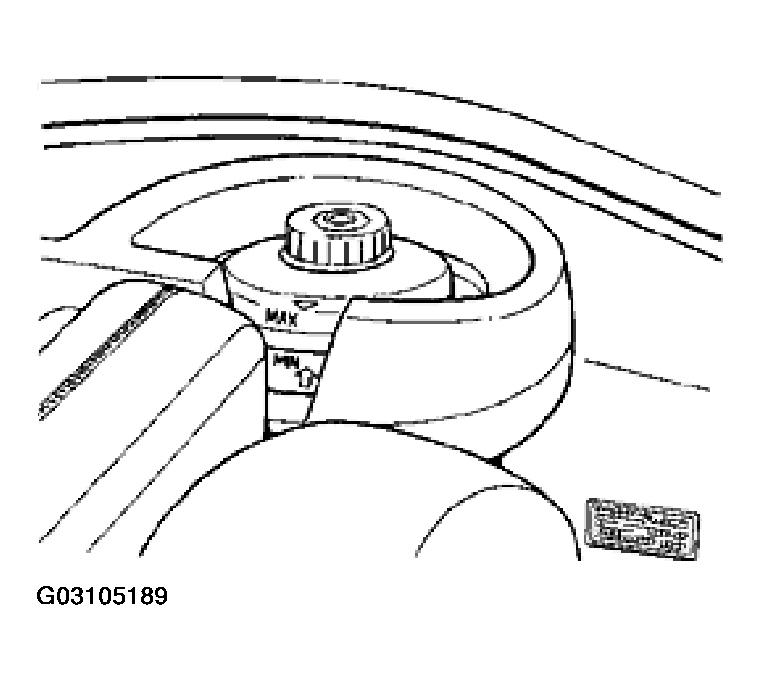

Fig 3: Locating Brake Fluid Reservoir
Courtesy of PORSCHE OF NORTH AMERICA, INC.
