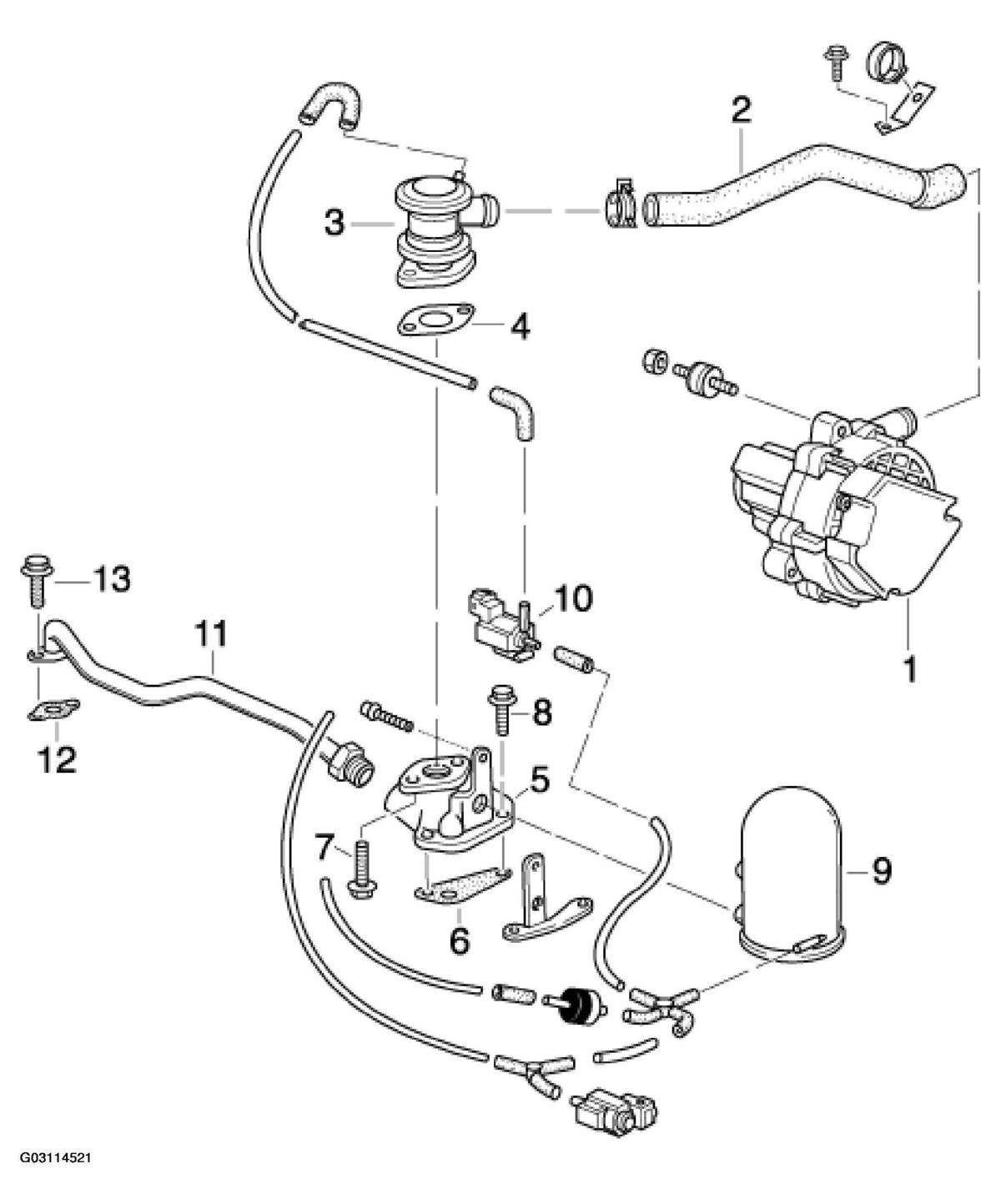

Diagram of secondary air injection as of model year 2000
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
SECONDARY AIR INJECTION REMOVAL & INSTALLATION (AS OF MODEL YEAR 2000)
| No. | Designation | Qty. | Removal | Installation |
|---|---|---|---|---|
| 1 | Secondary air pump | 1 | Pay attention to the installation position | |
| 2 | Hose | 1 | New part as of model year 2000 | |
| 3 | Anti-run-on valve ('combination valve') | 1 | New part as of model year 2000 | |
| 4 | Seal for anti-run-on valve | 1 | Replace | |
| 5 | Distributor housing | 1 | New part as of model year 2000 | |
| 6 | Seal for distributor housing | 1 | Replace | |
| 7 | Hexagon-head bolt M6 x16 | 2 | Tightening torque 10 Nm (7.5ftlb.) | |
| 8 | Hexagon-head bolt M6 x 20, distributor housing | 2 | Tightening torque 10 Nm (7.5ftlb.) | |
| 9 | Vacuum reservoir | 1 | ||
| 10 | Switch-over valve | 1 | ||
| 11 | Air line | 1 | New part as of model year 2000 | |
| 12 | Seal for air line | 1 | Replace | |
| 13 | Hexagon-head bolt M6 x 16 | 2 | Tightening torque 10 Nm (7.5ftlb.) |
