Removing muffler

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: In order to avoid damage to the wheel, use the prescribed special tool (socket wrench insert) P 300 to loosen and unscrew the wheel bolts.

Remove the rear wheel. To do this, unscrew and remove the wheel bolts.

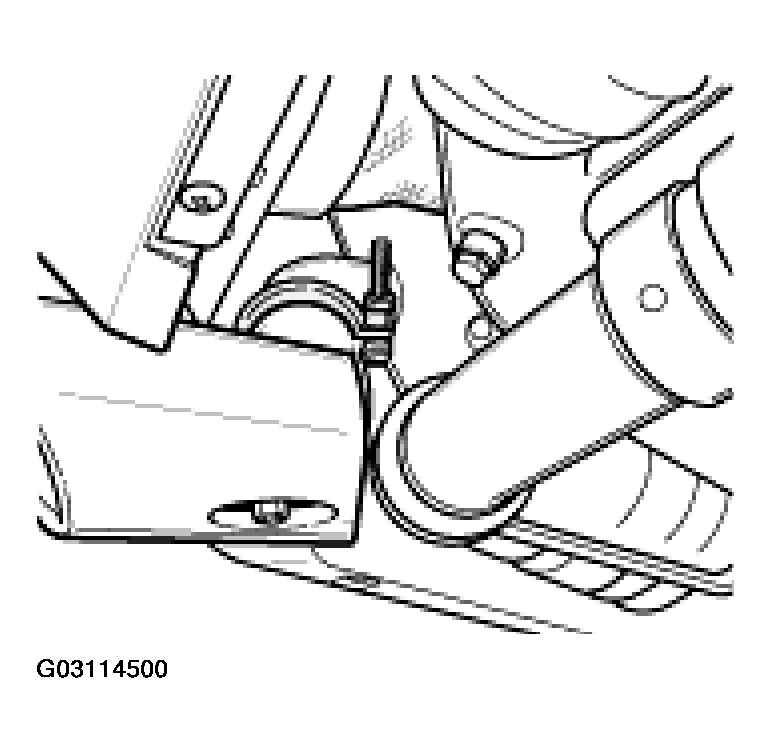

Remove tailpipe. To do this, unscrew the hexagon nut of the fastening clamp, spread the clamp and completely remove tailpipe.

Fig 1: Removing Tailpipe
Courtesy of PORSCHE OF NORTH AMERICA, INC.

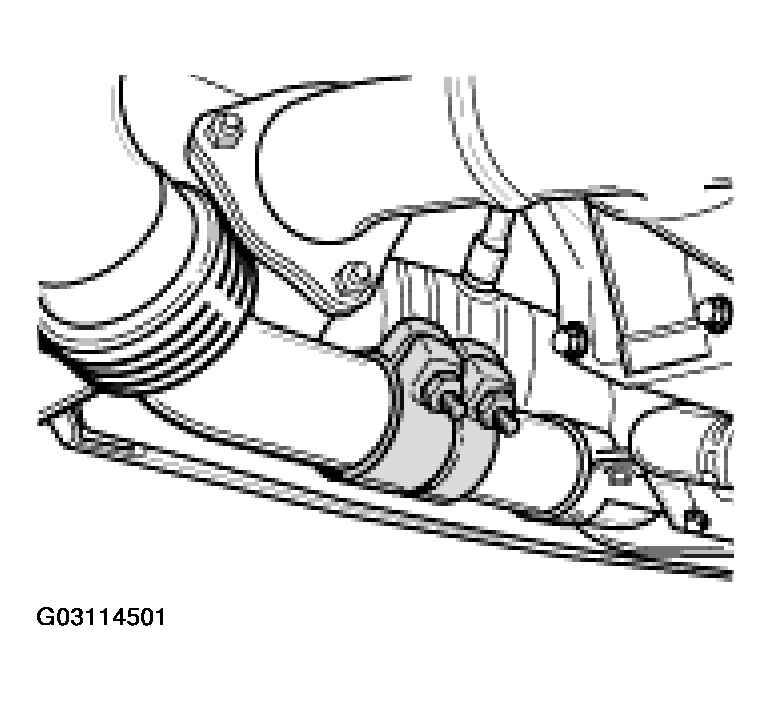

Undo clamping sleeve to the catalytic converter. To do this, undo the two hexagon nuts and push the clamping sleeve toward the catalytic converter (if corroded, treat with penetrating oil or heat). Then pull off the sleeve.

Fig 2: Undoing Clamping Sleeve To Catalytic Converter
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Remove muffler. To do this, unscrew the three M8 hexagon-head bolts and lift out the muffler toward the wheel hub. Suitable tool: commercially available 3/8-inch ratchet wrench with long extension, joint and socket wrench insert (a/f 13).

Fig 3: Unscrewing Three M8 Hexagon-Head Bolts And Lifting Out Muffler Toward Wheel Hub

Courtesy of PORSCHE OF NORTH AMERICA, INC.

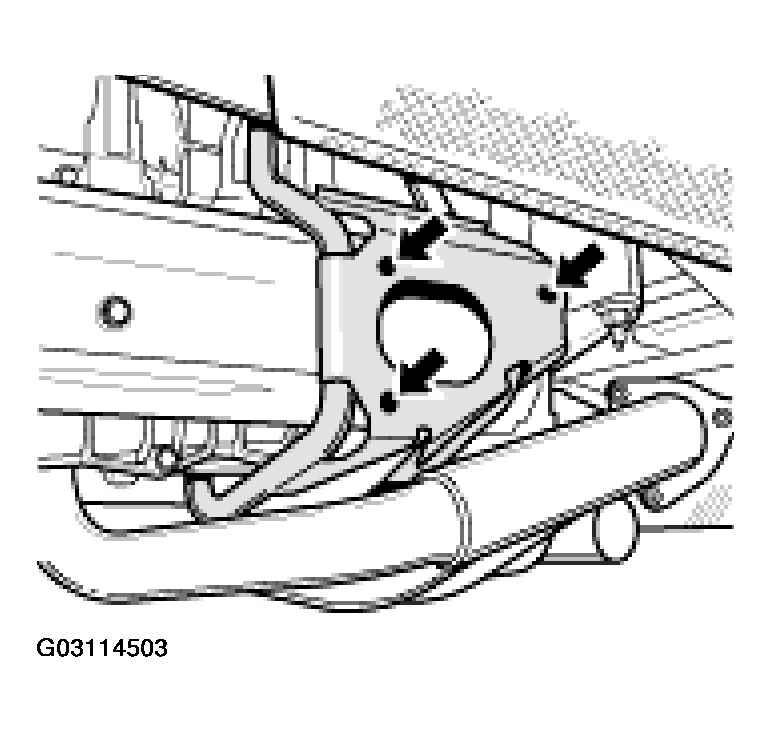

Screw connection points for the muffler

Fig 4: Locating Screw Connection Points For Muffler

Courtesy of PORSCHE OF NORTH AMERICA, INC.
