Leak test for exhaust system: Tools

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2005 Porsche 911, 2004 Porsche 911, 2003 Porsche 911, 2002 Porsche 911, and 2001 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Item 1: Plug for exhaust system leak test

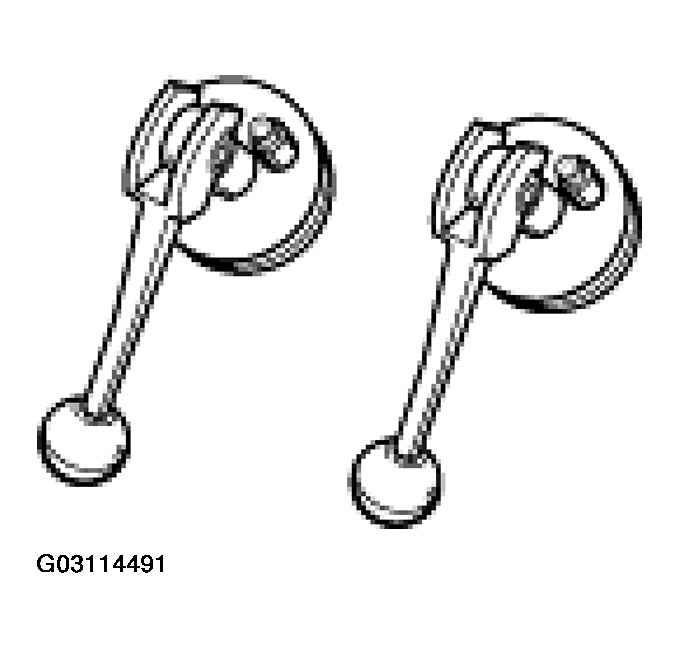

Fig 1: Identifying Special Tool - Plug For Exhaust System Leak Test

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Clamping position: rubber seal constricted

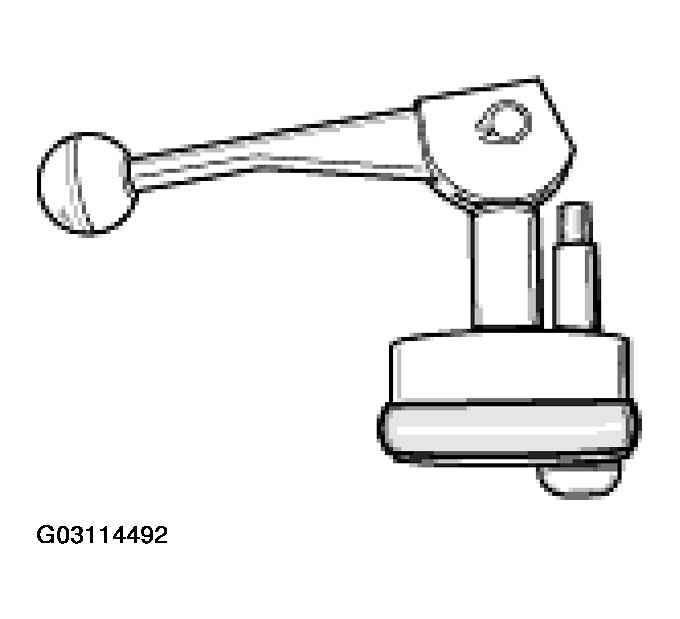

Fig 2: Identifying Clamping Position: Rubber Seal Constricted

Courtesy of PORSCHE OF NORTH AMERICA, INC.

SPECIAL TOOL

Item	Special tool designation	Remarks
1		Replacement rubber seals must be obtained from the manufacturer (details on the underside of the plug)
	Leak-locating spray	e.g. TPS674 test spray from TEGA in Wurzburg
